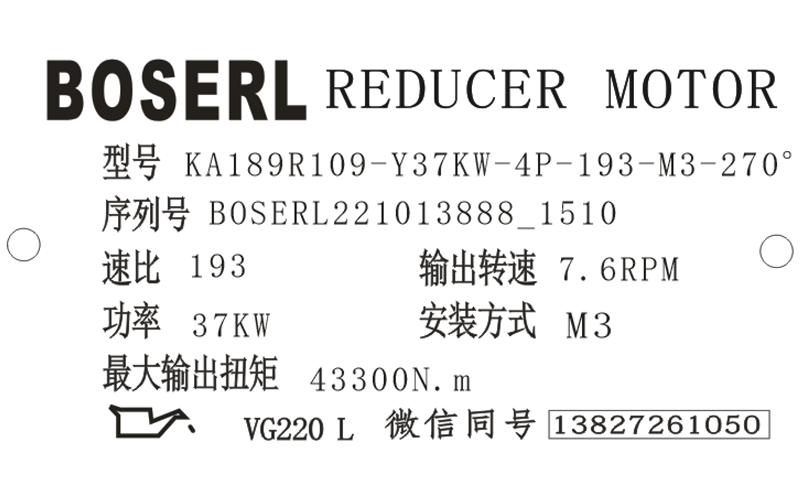

KA189R109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189R109減速機選型樣本。

KA189R109-Y37KW-4P-193-M3-270°

KA/R：系列代號

189/109：減速機規格代號

Y：電機

37KW：電機功率

4P：電機級數

193：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

KA189R109減速機電機保養檢查：

KA189R109減速機電機一般檢查：定期檢查電機。檢查頻率取決于周圍空氣的潮濕程度以及當地的天氣狀況。可預先通過試驗確定，并嚴格遵守；保持電機清潔和自然通風。在多灰塵環境中使用電機時必須定期檢查通風系統并進行清潔；檢查油封的狀況，必要時應更換；檢查接線和安裝螺栓的狀況。齒輪減速電機

做一般定期檢查時，請需注意：溫度上升齒輪減速電機為F級絕緣，全密閉外扇構造，所以電機表面溫度比周圍高50°C左右即屬正常;如果溫度高于以上時，必須停機檢查（因素：電機或負載傳動系統異常）。

KA189R109減速機剎車電機剎車片因長時間使用會有磨損，請依據剎車間隙值進行調整（正常間隙值0.3~0.7mm）。

KA189R109減速機電機異常振動、噪音正常情況，本機幾乎沒有振動噪音。若有某些安裝異常使用，會產生振動噪音，所以請特別留意（當空載噪音值在70dB(A)/1M以下時，是被容許的）；電機通風口有時會積聚雜物妨礙通風，所以請清除電機外部，以確保電機正常運行溫度；定期檢查時，請用兆歐表以500V測試電機繞組之絕緣阻抗，對地電阻應1MQ以上，以避免漏電之風險。

測定絕緣電阻時，請勿觸摸端子。否則有可能會導致觸電。減速電機工作時的表面溫度較高，請勿赤手觸摸。否則有可能會導致燙傷。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞。單相電機的啟動用電容器的通電部分，在未完全放電前請勿觸及。否則有可能會導致觸電。使電機反轉時，請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控。直角減速機

KA189R109減速機電機不轉解決方案：

電源未接通或接觸不良或電源電壓過低，排查維修；

過載跳閘，選擇大容量電機或減輕負載；

機械故障，檢查電機和傳動裝置是否可以自由轉動。檢查軸承和潤滑脂；

電機卡死，更換電機；

電源連接錯誤，核對接線是否與電機接線圖一致；空心軸減速機

定子繞組斷路，用萬用表歐姆檔檢查，若有相無電阻，則是此原因，確認后換線圈繞組；

定子繞組匝間短路，用萬用表歐姆檔檢查，若有相電阻與標佳值偏差夭于10%，則是此原因，確認后換線圈繞組；

定子繞組對地短路，用萬用表歐姆檔檢查，若線圈與機殼間有電阻小于1000歐，則是此原因，確認后換線圈繞組；

定子繞組接線錯誤，拆開電機找出錯誤，重新接線；

定子線圈的6引線接錯，換定子線圈。

KA189R109減速電機型號：

YQKA187R107-Y112M4，YQKA187R107-Y132M4，YQKA187R107-Y160M4，YQKA187R107-Y180M4，YQKA187R107-Y200M4，YQKA187R107-Y225M4，YQKA187R107-Y250M4，YQKA187RF107-Y112M4，YQKA187RF107-Y11KWA，YQKA187RF107-Y132M4，YQKA187RF107-Y15KWA，YQKA187RF107-Y160M4，YQKA187RF107-Y18.5KWA，YQKA187RF107-Y180M4，YQKA187RF107-Y200M4，YQKA187RF107-Y225M4，YQKA187RF107-Y22KWA，YQKA187RF107-Y250M4，YQKA187RF107-Y30KWA，YQKA187RF107-Y37KWA，YQKA187RF107-Y45KWA，YQKA187RF107-Y4KWA，YQKA187RF107-Y5.5KWA，YQKA187RF107-Y55KWA，YQKA187RF107-Y7.5KWA，YQKA187RF107-YB112M4，YQKA187RF107-YB132M4，YQKA187RF107-YB160M4，YQKA187RF107-YB180M4，YQKA187RF107-YB200L4，YQKA187RF107-YB225M4，YQKA187RF107-YB250M4，YQKA187RF107-YDP112M4，YQKA187RF107-YDP132M4，YQKA187RF107-YDP160M4，YQKA187RF107-YDP180M4，YQKA187RF107-YDP200L4，YQKA187RF107-YDP225M4，YQKA187RF107-YDP250M4，YQKA187RF107-YE112M4，YQKA187RF107-YE132M4，YQKA187RF107-YE160M4，YQKA187RF107-YE180M4，YQKA187RF107-YE200L4，YQKA187RF107-YE225M4，YQKA187RF107-YE250M4，YQKA187RF107-YEJ112M4，YQKA187RF107-YEJ132M4，YQKA187RF107-YEJ160M4，YQKA187RF107-YEJ180M4，YQKA187RF107-YEJ200L4，YQKA187RF107-YEJ225M4，YQKA187RF107-YEJ250M4，YQKA187RF107-YEJB112M4，YQKA187RF107-YEJB132M4，YQKA187RF107-YEJB160M4，YQKA187RF107-YEJB180M4，YQKA187RF107-YEJB200L4，YQKA187RF107-YEJB225M4，YQKA187RF107-YEJB250M4，YQKA187RF107-YP112M4，YQKA187RF107-YP132M4，YQKA187RF107-YP160M4，YQKA187RF107-YP180M4，YQKA187RF107-YP200L4，YQKA187RF107-YP225M4，YQKA187RF107-YP250M4，YQKA187RF107-YPB112M4，YQKA187RF107-YPB132M4，YQKA187RF107-YPB160M4，YQKA187RF107-YPB180M4，YQKA187RF107-YPB200L4，YQKA187RF107-YPB225M4，YQKA187RF107-YPB250M4，YQKA187RF107-YPE112M4，YQKA187RF107-YPE132M4，YQKA187RF107-YPE160M4，YQKA187RF107-YPE180M4，YQKA187RF107-YPE200L4，YQKA187RF107-YPE225M4，YQKA187RF107-YPE250M4，YQKA187RF107-YS112M4，YQKA187RF107-YS132M4，YQKA187RF107-YS160M4，YQKA187RF107-YS180M4，YQKA187RF107-YS200L4，YQKA187RF107-YS225M4，YQKA187RF107-YS250M4，YQKA187RF107-YVB112M4，YQKA187RF107-YVB132M4，YQKA187RF107-YVB160M4，YQKA187RF107-YVB180M4，YQKA187RF107-YVB200L4，YQKA187RF107-YVB225M4，YQKA187RF107-YVB250M4，YQKA187RF107-YVP112M4，YQKA187RF107-YVP132M4，YQKA187RF107-YVP160M4，YQKA187RF107-YVP180M4，YQKA187RF107-YVP200L4，YQKA187RF107-YVP225M4，YQKA187RF107-YVP250M4，YQKA187RF107-YVPEJ112M4，YQKA187RF107-YVPEJ132M4，YQKA187RF107-YVPEJ160M4，YQKA187RF107-YVPEJ180M4，YQKA187RF107-YVPEJ200L4，YQKA187RF107-YVPEJ225M4，YQKA187RF107-YVPEJ250M4，SKA187R107-Y112M4，SKA187R107-Y132M4，SKA187R107-Y160M4，SKA187R107-Y180M4，SKA187R107-Y200M4，SKA187R107-Y225M4，SKA187R107-Y250M4，SKA187RF107-Y112M4，SKA187RF107-Y11KWA，SKA187RF107-Y132M4，SKA187RF107-Y15KWA，SKA187RF107-Y160M4，SKA187RF107-Y18.5KWA，SKA187RF107-Y180M4，SKA187RF107-Y200M4，SKA187RF107-Y225M4，SKA187RF107-Y22KWA，SKA187RF107-Y250M4，SKA187RF107-Y30KWA，SKA187RF107-Y37KWA，SKA187RF107-Y45KWA，SKA187RF107-Y4KWA，SKA187RF107-Y5.5KWA，SKA187RF107-Y55KWA，SKA187RF107-Y7.5KWA，SKA187RF107-YB112M4，SKA187RF107-YB132M4，SKA187RF107-YB160M4，SKA187RF107-YB180M4，SKA187RF107-YB200L4，SKA187RF107-YB225M4，SKA187RF107-YB250M4，SKA187RF107-YDP112M4，SKA187RF107-YDP132M4，SKA187RF107-YDP160M4，SKA187RF107-YDP180M4，SKA187RF107-YDP200L4，SKA187RF107-YDP225M4，SKA187RF107-YDP250M4，SKA187RF107-YE112M4，SKA187RF107-YE132M4，SKA187RF107-YE160M4，SKA187RF107-YE180M4，SKA187RF107-YE200L4，SKA187RF107-YE225M4，SKA187RF107-YE250M4，SKA187RF107-YEJ112M4，SKA187RF107-YEJ132M4，SKA187RF107-YEJ160M4，SKA187RF107-YEJ180M4，SKA187RF107-YEJ200L4，SKA187RF107-YEJ225M4，SKA187RF107-YEJ250M4，SKA187RF107-YEJB112M4，SKA187RF107-YEJB132M4，SKA187RF107-YEJB160M4，SKA187RF107-YEJB180M4，SKA187RF107-YEJB200L4，SKA187RF107-YEJB225M4，SKA187RF107-YEJB250M4，SKA187RF107-YP112M4，SKA187RF107-YP132M4，SKA187RF107-YP160M4，SKA187RF107-YP180M4，SKA187RF107-YP200L4，SKA187RF107-YP225M4，SKA187RF107-YP250M4，SKA187RF107-YPB112M4，SKA187RF107-YPB132M4，SKA187RF107-YPB160M4，SKA187RF107-YPB180M4，SKA187RF107-YPB200L4，SKA187RF107-YPB225M4，SKA187RF107-YPB250M4，SKA187RF107-YPE112M4，SKA187RF107-YPE132M4，SKA187RF107-YPE160M4，SKA187RF107-YPE180M4，SKA187RF107-YPE200L4，SKA187RF107-YPE225M4，SKA187RF107-YPE250M4，SKA187RF107-YS112M4，SKA187RF107-YS132M4，SKA187RF107-YS160M4，SKA187RF107-YS180M4，SKA187RF107-YS200L4，SKA187RF107-YS225M4，SKA187RF107-YS250M4，SKA187RF107-YVB112M4，SKA187RF107-YVB132M4，SKA187RF107-YVB160M4，SKA187RF107-YVB180M4，SKA187RF107-YVB200L4，SKA187RF107-YVB225M4，SKA187RF107-YVB250M4，SKA187RF107-YVP112M4，SKA187RF107-YVP132M4，SKA187RF107-YVP160M4，SKA187RF107-YVP180M4，SKA187RF107-YVP200L4，SKA187RF107-YVP225M4，SKA187RF107-YVP250M4，SKA187RF107-YVPEJ112M4，SKA187RF107-YVPEJ132M4，SKA187RF107-YVPEJ160M4，SKA187RF107-YVPEJ180M4，SKA187RF107-YVPEJ200L4，SKA187RF107-YVPEJ225M4，SKA187RF107-YVPEJ250M4，AKA187R107-Y112M4，AKA187R107-Y132M4，AKA187R107-Y160M4，AKA187R107-Y180M4，AKA187R107-Y200M4，AKA187R107-Y225M4，AKA187R107-Y250M4，AKA187RF107-Y112M4，AKA187RF107-Y11KWA，AKA187RF107-Y132M4，AKA187RF107-Y15KWA，AKA187RF107-Y160M4，AKA187RF107-Y18.5KWA，AKA187RF107-Y180M4，AKA187RF107-Y200M4，AKA187RF107-Y225M4，AKA187RF107-Y22KWA，AKA187RF107-Y250M4，AKA187RF107-Y30KWA，AKA187RF107-Y37KWA，AKA187RF107-Y45KWA，AKA187RF107-Y4KWA，AKA187RF107-Y5.5KWA，AKA187RF107-Y55KWA，AKA187RF107-Y7.5KWA，AKA187RF107-YB112M4，AKA187RF107-YB132M4，AKA187RF107-YB160M4，AKA187RF107-YB180M4，AKA187RF107-YB200L4，AKA187RF107-YB225M4，AKA187RF107-YB250M4，AKA187RF107-YDP112M4，AKA187RF107-YDP132M4，AKA187RF107-YDP160M4，AKA187RF107-YDP180M4，AKA187RF107-YDP200L4，AKA187RF107-YDP225M4，AKA187RF107-YDP250M4，AKA187RF107-YE112M4，AKA187RF107-YE132M4，AKA187RF107-YE160M4，AKA187RF107-YE180M4，AKA187RF107-YE200L4，AKA187RF107-YE225M4，AKA187RF107-YE250M4，AKA187RF107-YEJ112M4，AKA187RF107-YEJ132M4，AKA187RF107-YEJ160M4，AKA187RF107-YEJ180M4，AKA187RF107-YEJ200L4，AKA187RF107-YEJ225M4，AKA187RF107-YEJ250M4，AKA187RF107-YEJB112M4，AKA187RF107-YEJB132M4，AKA187RF107-YEJB160M4，AKA187RF107-YEJB180M4，AKA187RF107-YEJB200L4，AKA187RF107-YEJB225M4，AKA187RF107-YEJB250M4，AKA187RF107-YP112M4，AKA187RF107-YP132M4，AKA187RF107-YP160M4，AKA187RF107-YP180M4，AKA187RF107-YP200L4，AKA187RF107-YP225M4，AKA187RF107-YP250M4，AKA187RF107-YPB112M4，AKA187RF107-YPB132M4，AKA187RF107-YPB160M4，AKA187RF107-YPB180M4，AKA187RF107-YPB200L4，AKA187RF107-YPB225M4，AKA187RF107-YPB250M4，AKA187RF107-YPE112M4，AKA187RF107-YPE132M4，AKA187RF107-YPE160M4，AKA187RF107-YPE180M4，AKA187RF107-YPE200L4，AKA187RF107-YPE225M4，AKA187RF107-YPE250M4，AKA187RF107-YS112M4，AKA187RF107-YS132M4，AKA187RF107-YS160M4，AKA187RF107-YS180M4，AKA187RF107-YS200L4，AKA187RF107-YS225M4，AKA187RF107-YS250M4，AKA187RF107-YVB112M4，AKA187RF107-YVB132M4，AKA187RF107-YVB160M4，AKA187RF107-YVB180M4，AKA187RF107-YVB200L4，AKA187RF107-YVB225M4，AKA187RF107-YVB250M4，AKA187RF107-YVP112M4，AKA187RF107-YVP132M4，AKA187RF107-YVP160M4，AKA187RF107-YVP180M4，AKA187RF107-YVP200L4，AKA187RF107-YVP225M4，AKA187RF107-YVP250M4，AKA187RF107-YVPEJ112M4，AKA187RF107-YVPEJ132M4，AKA187RF107-YVPEJ160M4，AKA187RF107-YVPEJ180M4，AKA187RF107-YVPEJ200L4，AKA187RF107-YVPEJ225M4，AKA187RF107-YVPEJ250M4，WKA187R107-Y112M4，WKA187R107-Y132M4，WKA187R107-Y160M4，WKA187R107-Y180M4，WKA187R107-Y200M4，WKA187R107-Y225M4，WKA187R107-Y250M4，WKA187RF107-Y112M4，WKA187RF107-Y11KWA，WKA187RF107-Y132M4，WKA187RF107-Y15KWA，WKA187RF107-Y160M4，WKA187RF107-Y18.5KWA，WKA187RF107-Y180M4，WKA187RF107-Y200M4，WKA187RF107-Y225M4，WKA187RF107-Y22KWA，WKA187RF107-Y250M4，WKA187RF107-Y30KWA，WKA187RF107-Y37KWA，WKA187RF107-Y45KWA，WKA187RF107-Y4KWA，WKA187RF107-Y5.5KWA，WKA187RF107-Y55KWA，WKA187RF107-Y7.5KWA，WKA187RF107-YB112M4，WKA187RF107-YB132M4，WKA187RF107-YB160M4，WKA187RF107-YB180M4，WKA187RF107-YB200L4，WKA187RF107-YB225M4，WKA187RF107-YB250M4，WKA187RF107-YDP112M4，WKA187RF107-YDP132M4，WKA187RF107-YDP160M4，WKA187RF107-YDP180M4，WKA187RF107-YDP200L4，WKA187RF107-YDP225M4，WKA187RF107-YDP250M4，WKA187RF107-YE112M4，WKA187RF107-YE132M4，WKA187RF107-YE160M4，WKA187RF107-YE180M4，WKA187RF107-YE200L4，WKA187RF107-YE225M4，WKA187RF107-YE250M4，WKA187RF107-YEJ112M4，WKA187RF107-YEJ132M4，WKA187RF107-YEJ160M4，WKA187RF107-YEJ180M4，WKA187RF107-YEJ200L4，WKA187RF107-YEJ225M4，WKA187RF107-YEJ250M4，WKA187RF107-YEJB112M4，WKA187RF107-YEJB132M4，WKA187RF107-YEJB160M4，WKA187RF107-YEJB180M4，WKA187RF107-YEJB200L4，WKA187RF107-YEJB225M4，WKA187RF107-YEJB250M4，WKA187RF107-YP112M4，WKA187RF107-YP132M4，WKA187RF107-YP160M4，WKA187RF107-YP180M4，WKA187RF107-YP200L4，WKA187RF107-YP225M4，WKA187RF107-YP250M4，WKA187RF107-YPB112M4，WKA187RF107-YPB132M4，WKA187RF107-YPB160M4，WKA187RF107-YPB180M4，WKA187RF107-YPB200L4，WKA187RF107-YPB225M4，WKA187RF107-YPB250M4，WKA187RF107-YPE112M4，WKA187RF107-YPE132M4，WKA187RF107-YPE160M4，WKA187RF107-YPE180M4，WKA187RF107-YPE200L4，WKA187RF107-YPE225M4，WKA187RF107-YPE250M4，WKA187RF107-YS112M4，WKA187RF107-YS132M4，WKA187RF107-YS160M4，WKA187RF107-YS180M4，WKA187RF107-YS200L4，WKA187RF107-YS225M4，WKA187RF107-YS250M4，WKA187RF107-YVB112M4，WKA187RF107-YVB132M4，WKA187RF107-YVB160M4，WKA187RF107-YVB180M4，WKA187RF107-YVB200L4，WKA187RF107-YVB225M4，WKA187RF107-YVB250M4，WKA187RF107-YVP112M4，WKA187RF107-YVP132M4，WKA187RF107-YVP160M4，WKA187RF107-YVP180M4，WKA187RF107-YVP200L4，WKA187RF107-YVP225M4，WKA187RF107-YVP250M4，WKA187RF107-YVPEJ112M4，WKA187RF107-YVPEJ132M4，WKA187RF107-YVPEJ160M4，WKA187RF107-YVPEJ180M4，WKA187RF107-YVPEJ200L4，WKA187RF107-YVPEJ225M4，WKA187RF107-YVPEJ250M4，XDKA187R107-Y112M4，XDKA187R107-Y132M4，XDKA187R107-Y160M4，XDKA187R107-Y180M4，XDKA187R107-Y200M4，XDKA187R107-Y225M4，XDKA187R107-Y250M4，XDKA187RF107-Y112M4，XDKA187RF107-Y11KWA，XDKA187RF107-Y132M4，XDKA187RF107-Y15KWA，XDKA187RF107-Y160M4，XDKA187RF107-Y18.5KWA，XDKA187RF107-Y180M4，XDKA187RF107-Y200M4，XDKA187RF107-Y225M4，XDKA187RF107-Y22KWA，XDKA187RF107-Y250M4，XDKA187RF107-Y30KWA，XDKA187RF107-Y37KWA，XDKA187RF107-Y45KWA，XDKA187RF107-Y4KWA，XDKA187RF107-Y5.5KWA，XDKA187RF107-Y55KWA，XDKA187RF107-Y7.5KWA，XDKA187RF107-YB112M4，XDKA187RF107-YB132M4，XDKA187RF107-YB160M4，XDKA187RF107-YB180M4，XDKA187RF107-YB200L4，XDKA187RF107-YB225M4，XDKA187RF107-YB250M4，XDKA187RF107-YDP112M4，XDKA187RF107-YDP132M4，XDKA187RF107-YDP160M4，XDKA187RF107-YDP180M4，XDKA187RF107-YDP200L4，XDKA187RF107-YDP225M4，XDKA187RF107-YDP250M4，XDKA187RF107-YE112M4，XDKA187RF107-YE132M4，XDKA187RF107-YE160M4，XDKA187RF107-YE180M4，XDKA187RF107-YE200L4，XDKA187RF107-YE225M4，XDKA187RF107-YE250M4，XDKA187RF107-YEJ112M4，XDKA187RF107-YEJ132M4，XDKA187RF107-YEJ160M4，XDKA187RF107-YEJ180M4，XDKA187RF107-YEJ200L4，XDKA187RF107-YEJ225M4，XDKA187RF107-YEJ250M4，XDKA187RF107-YEJB112M4，XDKA187RF107-YEJB132M4，XDKA187RF107-YEJB160M4，XDKA187RF107-YEJB180M4，XDKA187RF107-YEJB200L4，XDKA187RF107-YEJB225M4，XDKA187RF107-YEJB250M4，XDKA187RF107-YP112M4，XDKA187RF107-YP132M4，XDKA187RF107-YP160M4，XDKA187RF107-YP180M4，XDKA187RF107-YP200L4，XDKA187RF107-YP225M4，XDKA187RF107-YP250M4，XDKA187RF107-YPB112M4，XDKA187RF107-YPB132M4，XDKA187RF107-YPB160M4，XDKA187RF107-YPB180M4，XDKA187RF107-YPB200L4，XDKA187RF107-YPB225M4，XDKA187RF107-YPB250M4，XDKA187RF107-YPE112M4，XDKA187RF107-YPE132M4，XDKA187RF107-YPE160M4，XDKA187RF107-YPE180M4，XDKA187RF107-YPE200L4，XDKA187RF107-YPE225M4，XDKA187RF107-YPE250M4，XDKA187RF107-YS112M4，XDKA187RF107-YS132M4，XDKA187RF107-YS160M4，XDKA187RF107-YS180M4，XDKA187RF107-YS200L4，XDKA187RF107-YS225M4，XDKA187RF107-YS250M4，XDKA187RF107-YVB112M4，XDKA187RF107-YVB132M4，XDKA187RF107-YVB160M4，XDKA187RF107-YVB180M4，XDKA187RF107-YVB200L4，XDKA187RF107-YVB225M4，XDKA187RF107-YVB250M4，XDKA187RF107-YVP112M4，XDKA187RF107-YVP132M4，XDKA187RF107-YVP160M4，XDKA187RF107-YVP180M4，XDKA187RF107-YVP200L4，XDKA187RF107-YVP225M4，XDKA187RF107-YVP250M4，XDKA187RF107-YVPEJ112M4，XDKA187RF107-YVPEJ132M4，XDKA187RF107-YVPEJ160M4，XDKA187RF107-YVPEJ180M4，XDKA187RF107-YVPEJ200L4，XDKA187RF107-YVPEJ225M4，XDKA187RF107-YVPEJ250M4，NKA187R107-Y112M4，NKA187R107-Y132M4，NKA187R107-Y160M4，NKA187R107-Y180M4，NKA187R107-Y200M4，NKA187R107-Y225M4，NKA187R107-Y250M4，NKA187RF107-Y112M4，NKA187RF107-Y11KWA，NKA187RF107-Y132M4，NKA187RF107-Y15KWA，NKA187RF107-Y160M4，NKA187RF107-Y18.5KWA，NKA187RF107-Y180M4，NKA187RF107-Y200M4，NKA187RF107-Y225M4，NKA187RF107-Y22KWA，NKA187RF107-Y250M4，NKA187RF107-Y30KWA，NKA187RF107-Y37KWA，NKA187RF107-Y45KWA，NKA187RF107-Y4KWA，NKA187RF107-Y5.5KWA，NKA187RF107-Y55KWA，NKA187RF107-Y7.5KWA，NKA187RF107-YB112M4，NKA187RF107-YB132M4，NKA187RF107-YB160M4，NKA187RF107-YB180M4，NKA187RF107-YB200L4，NKA187RF107-YB225M4，NKA187RF107-YB250M4，NKA187RF107-YDP112M4，NKA187RF107-YDP132M4，NKA187RF107-YDP160M4，NKA187RF107-YDP180M4，NKA187RF107-YDP200L4，NKA187RF107-YDP225M4，NKA187RF107-YDP250M4，NKA187RF107-YE112M4，NKA187RF107-YE132M4，NKA187RF107-YE160M4，NKA187RF107-YE180M4，NKA187RF107-YE200L4，NKA187RF107-YE225M4，NKA187RF107-YE250M4，NKA187RF107-YEJ112M4，NKA187RF107-YEJ132M4，NKA187RF107-YEJ160M4，NKA187RF107-YEJ180M4，NKA187RF107-YEJ200L4，NKA187RF107-YEJ225M4，NKA187RF107-YEJ250M4，NKA187RF107-YEJB112M4，NKA187RF107-YEJB132M4，NKA187RF107-YEJB160M4，NKA187RF107-YEJB180M4，NKA187RF107-YEJB200L4，NKA187RF107-YEJB225M4，NKA187RF107-YEJB250M4，NKA187RF107-YP112M4，NKA187RF107-YP132M4，NKA187RF107-YP160M4，NKA187RF107-YP180M4，NKA187RF107-YP200L4，NKA187RF107-YP225M4，NKA187RF107-YP250M4，NKA187RF107-YPB112M4，NKA187RF107-YPB132M4，NKA187RF107-YPB160M4，NKA187RF107-YPB180M4，NKA187RF107-YPB200L4，NKA187RF107-YPB225M4，NKA187RF107-YPB250M4，NKA187RF107-YPE112M4，NKA187RF107-YPE132M4，NKA187RF107-YPE160M4，NKA187RF107-YPE180M4，NKA187RF107-YPE200L4，NKA187RF107-YPE225M4，NKA187RF107-YPE250M4，NKA187RF107-YS112M4，NKA187RF107-YS132M4，NKA187RF107-YS160M4，NKA187RF107-YS180M4，NKA187RF107-YS200L4，NKA187RF107-YS225M4，NKA187RF107-YS250M4，NKA187RF107-YVB112M4，NKA187RF107-YVB132M4，NKA187RF107-YVB160M4，NKA187RF107-YVB180M4，NKA187RF107-YVB200L4，NKA187RF107-YVB225M4，NKA187RF107-YVB250M4，NKA187RF107-YVP112M4，NKA187RF107-YVP132M4，NKA187RF107-YVP160M4，NKA187RF107-YVP180M4，NKA187RF107-YVP200L4，NKA187RF107-YVP225M4，NKA187RF107-YVP250M4，NKA187RF107-YVPEJ112M4，NKA187RF107-YVPEJ132M4，NKA187RF107-YVPEJ160M4，NKA187RF107-YVPEJ180M4，NKA187RF107-YVPEJ200L4，NKA187RF107-YVPEJ225M4，NKA187RF107-YVPEJ250M4，JCKA187R107-Y112M4，JCKA187R107-Y132M4，JCKA187R107-Y160M4，JCKA187R107-Y180M4，JCKA187R107-Y200M4，JCKA187R107-Y225M4，JCKA187R107-Y250M4，JCKA187RF107-Y112M4，JCKA187RF107-Y11KWA，JCKA187RF107-Y132M4，JCKA187RF107-Y15KWA，JCKA187RF107-Y160M4，JCKA187RF107-Y18.5KWA，JCKA187RF107-Y180M4，JCKA187RF107-Y200M4，JCKA187RF107-Y225M4，JCKA187RF107-Y22KWA，JCKA187RF107-Y250M4，JCKA187RF107-Y30KWA，JCKA187RF107-Y37KWA，JCKA187RF107-Y45KWA，JCKA187RF107-Y4KWA，JCKA187RF107-Y5.5KWA，JCKA187RF107-Y55KWA，JCKA187RF107-Y7.5KWA，JCKA187RF107-YB112M4，JCKA187RF107-YB132M4，JCKA187RF107-YB160M4，JCKA187RF107-YB180M4，JCKA187RF107-YB200L4，JCKA187RF107-YB225M4，JCKA187RF107-YB250M4，JCKA187RF107-YDP112M4，JCKA187RF107-YDP132M4，JCKA187RF107-YDP160M4，JCKA187RF107-YDP180M4，JCKA187RF107-YDP200L4，JCKA187RF107-YDP225M4，JCKA187RF107-YDP250M4，JCKA187RF107-YE112M4，JCKA187RF107-YE132M4，JCKA187RF107-YE160M4，JCKA187RF107-YE180M4，JCKA187RF107-YE200L4，JCKA187RF107-YE225M4，JCKA187RF107-YE250M4，JCKA187RF107-YEJ112M4，JCKA187RF107-YEJ132M4，JCKA187RF107-YEJ160M4，JCKA187RF107-YEJ180M4，JCKA187RF107-YEJ200L4，JCKA187RF107-YEJ225M4，JCKA187RF107-YEJ250M4，JCKA187RF107-YEJB112M4，JCKA187RF107-YEJB132M4，JCKA187RF107-YEJB160M4，JCKA187RF107-YEJB180M4，JCKA187RF107-YEJB200L4，JCKA187RF107-YEJB225M4，JCKA187RF107-YEJB250M4，JCKA187RF107-YP112M4，JCKA187RF107-YP132M4，JCKA187RF107-YP160M4，JCKA187RF107-YP180M4，JCKA187RF107-YP200L4，JCKA187RF107-YP225M4，JCKA187RF107-YP250M4，JCKA187RF107-YPB112M4，JCKA187RF107-YPB132M4，JCKA187RF107-YPB160M4，JCKA187RF107-YPB180M4，JCKA187RF107-YPB200L4，JCKA187RF107-YPB225M4，JCKA187RF107-YPB250M4，JCKA187RF107-YPE112M4，JCKA187RF107-YPE132M4，JCKA187RF107-YPE160M4，JCKA187RF107-YPE180M4，JCKA187RF107-YPE200L4，JCKA187RF107-YPE225M4，JCKA187RF107-YPE250M4，JCKA187RF107-YS112M4，JCKA187RF107-YS132M4，JCKA187RF107-YS160M4，JCKA187RF107-YS180M4，JCKA187RF107-YS200L4，JCKA187RF107-YS225M4，JCKA187RF107-YS250M4，JCKA187RF107-YVB112M4，JCKA187RF107-YVB132M4，JCKA187RF107-YVB160M4，JCKA187RF107-YVB180M4，JCKA187RF107-YVB200L4，JCKA187RF107-YVB225M4，JCKA187RF107-YVB250M4，JCKA187RF107-YVP112M4，JCKA187RF107-YVP132M4，JCKA187RF107-YVP160M4，JCKA187RF107-YVP180M4，JCKA187RF107-YVP200L4，JCKA187RF107-YVP225M4，JCKA187RF107-YVP250M4，JCKA187RF107-YVPEJ112M4，JCKA187RF107-YVPEJ132M4，JCKA187RF107-YVPEJ160M4，JCKA187RF107-YVPEJ180M4，JCKA187RF107-YVPEJ200L4，JCKA187RF107-YVPEJ225M4，JCKA187RF107-YVPEJ250M4，KWA187RW107-Y112M4，KWA187RW107-Y132M4，KWA187RW107-Y160M4，KWA187RW107-Y180M4，KWA187RW107-Y200M4，KWA187RW107-Y225M4，KWA187RW107-Y250M4，KWA187RWF107-Y112M4，KWA187RWF107-Y11KWA，KWA187RWF107-Y132M4，KWA187RWF107-Y15KWA，KWA187RWF107-Y160M4，KWA187RWF107-Y18.5KWA，KWA187RWF107-Y180M4，KWA187RWF107-Y200M4，KWA187RWF107-Y225M4，KWA187RWF107-Y22KWA，KWA187RWF107-Y250M4，KWA187RWF107-Y30KWA，KWA187RWF107-Y37KWA，KWA187RWF107-Y45KWA，KWA187RWF107-Y4KWA，KWA187RWF107-Y5.5KWA，KWA187RWF107-Y55KWA，KWA187RWF107-Y7.5KWA，KWA187RWF107-YB112M4，KWA187RWF107-YB132M4，KWA187RWF107-YB160M4，KWA187RWF107-YB180M4，KWA187RWF107-YB200L4，KWA187RWF107-YB225M4，KWA187RWF107-YB250M4，KWA187RWF107-YDP112M4，KWA187RWF107-YDP132M4，KWA187RWF107-YDP160M4，KWA187RWF107-YDP180M4，KWA187RWF107-YDP200L4，KWA187RWF107-YDP225M4，KWA187RWF107-YDP250M4，KWA187RWF107-YE112M4，KWA187RWF107-YE132M4，KWA187RWF107-YE160M4，KWA187RWF107-YE180M4，KWA187RWF107-YE200L4，KWA187RWF107-YE225M4，KWA187RWF107-YE250M4，KWA187RWF107-YEJ112M4，KWA187RWF107-YEJ132M4，KWA187RWF107-YEJ160M4，KWA187RWF107-YEJ180M4，KWA187RWF107-YEJ200L4，KWA187RWF107-YEJ225M4，KWA187RWF107-YEJ250M4，KWA187RWF107-YEJB112M4，KWA187RWF107-YEJB132M4，KWA187RWF107-YEJB160M4，KWA187RWF107-YEJB180M4，KWA187RWF107-YEJB200L4，KWA187RWF107-YEJB225M4，KWA187RWF107-YEJB250M4，KWA187RWF107-YP112M4，KWA187RWF107-YP132M4，KWA187RWF107-YP160M4，KWA187RWF107-YP180M4，KWA187RWF107-YP200L4，KWA187RWF107-YP225M4，KWA187RWF107-YP250M4，KWA187RWF107-YPB112M4，KWA187RWF107-YPB132M4，KWA187RWF107-YPB160M4，KWA187RWF107-YPB180M4，KWA187RWF107-YPB200L4，KWA187RWF107-YPB225M4，KWA187RWF107-YPB250M4，KWA187RWF107-YPE112M4，KWA187RWF107-YPE132M4，KWA187RWF107-YPE160M4，KWA187RWF107-YPE180M4，KWA187RWF107-YPE200L4，KWA187RWF107-YPE225M4，KWA187RWF107-YPE250M4，KWA187RWF107-YS112M4，KWA187RWF107-YS132M4，KWA187RWF107-YS160M4，KWA187RWF107-YS180M4，KWA187RWF107-YS200L4，KWA187RWF107-YS225M4，KWA187RWF107-YS250M4，KWA187RWF107-YVB112M4，KWA187RWF107-YVB132M4，KWA187RWF107-YVB160M4，KWA187RWF107-YVB180M4，KWA187RWF107-YVB200L4，KWA187RWF107-YVB225M4，KWA187RWF107-YVB250M4，KWA187RWF107-YVP112M4，KWA187RWF107-YVP132M4，KWA187RWF107-YVP160M4，KWA187RWF107-YVP180M4，KWA187RWF107-YVP200L4，KWA187RWF107-YVP225M4，KWA187RWF107-YVP250M4，KWA187RWF107-YVPEJ112M4，KWA187RWF107-YVPEJ132M4，KWA187RWF107-YVPEJ160M4，KWA187RWF107-YVPEJ180M4，KWA187RWF107-YVPEJ200L4，KWA187RWF107-YVPEJ225M4，KWA187RWF107-YVPEJ250M4，KA189R109-Y112M4，KA189R109-Y132M4，KA189R109-Y160M4，KA189R109-Y180M4，KA189R109-Y200M4，KA189R109-Y225M4，KA189R109-Y250M4，KA189RF109-Y112M4，KA189RF109-Y11KWA，KA189RF109-Y132M4，KA189RF109-Y15KWA，KA189RF109-Y160M4，KA189RF109-Y18.5KWA，KA189RF109-Y180M4，KA189RF109-Y200M4，KA189RF109-Y225M4，KA189RF109-Y22KWA，KA189RF109-Y250M4，KA189RF109-Y30KWA，KA189RF109-Y37KWA，KA189RF109-Y45KWA，KA189RF109-Y4KWA，KA189RF109-Y5.5KWA，KA189RF109-Y55KWA，KA189RF109-Y7.5KWA，KA189RF109-YB112M4，KA189RF109-YB132M4，KA189RF109-YB160M4，KA189RF109-YB180M4，KA189RF109-YB200L4，KA189RF109-YB225M4，KA189RF109-YB250M4，KA189RF109-YDP112M4，KA189RF109-YDP132M4，KA189RF109-YDP160M4，KA189RF109-YDP180M4，KA189RF109-YDP200L4，KA189RF109-YDP225M4，KA189RF109-YDP250M4，KA189RF109-YE112M4，KA189RF109-YE132M4，KA189RF109-YE160M4，KA189RF109-YE180M4，KA189RF109-YE200L4，KA189RF109-YE225M4，KA189RF109-YE250M4，KA189RF109-YEJ112M4，KA189RF109-YEJ132M4，KA189RF109-YEJ160M4，KA189RF109-YEJ180M4，KA189RF109-YEJ200L4，KA189RF109-YEJ225M4，KA189RF109-YEJ250M4，KA189RF109-YEJB112M4，KA189RF109-YEJB132M4，KA189RF109-YEJB160M4，KA189RF109-YEJB180M4，KA189RF109-YEJB200L4，KA189RF109-YEJB225M4，KA189RF109-YEJB250M4，KA189RF109-YP112M4，KA189RF109-YP132M4，KA189RF109-YP160M4，KA189RF109-YP180M4，KA189RF109-YP200L4，KA189RF109-YP225M4，KA189RF109-YP250M4，KA189RF109-YPB112M4，KA189RF109-YPB132M4，KA189RF109-YPB160M4，KA189RF109-YPB180M4，KA189RF109-YPB200L4，KA189RF109-YPB225M4，KA189RF109-YPB250M4，KA189RF109-YPE112M4，KA189RF109-YPE132M4，KA189RF109-YPE160M4，KA189RF109-YPE180M4，KA189RF109-YPE200L4，KA189RF109-YPE225M4，KA189RF109-YPE250M4，KA189RF109-YS112M4，KA189RF109-YS132M4，KA189RF109-YS160M4，KA189RF109-YS180M4，KA189RF109-YS200L4，KA189RF109-YS225M4，KA189RF109-YS250M4，KA189RF109-YVB112M4，KA189RF109-YVB132M4，KA189RF109-YVB160M4，KA189RF109-YVB180M4，KA189RF109-YVB200L4，KA189RF109-YVB225M4，KA189RF109-YVB250M4，KA189RF109-YVP112M4，KA189RF109-YVP132M4，KA189RF109-YVP160M4，KA189RF109-YVP180M4，KA189RF109-YVP200L4，KA189RF109-YVP225M4，KA189RF109-YVP250M4，KA189RF109-YVPEJ112M4，KA189RF109-YVPEJ132M4，KA189RF109-YVPEJ160M4，KA189RF109-YVPEJ180M4，KA189RF109-YVPEJ200L4，KA189RF109-YVPEJ225M4，KA189RF109-YVPEJ250M4。
