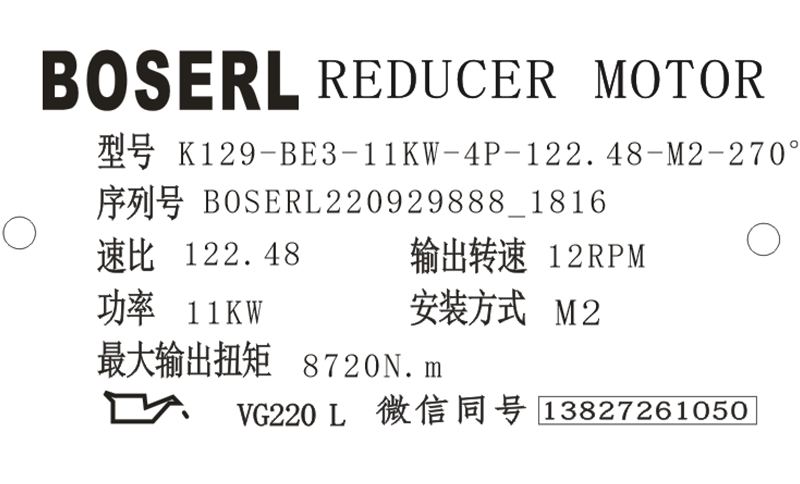

K129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K129減速器選型樣本。

K129-BE3-11KW-4P-122.48-M2-270°

K：系列代號

129：減速機規格代號

BE3：電機

11KW：電機功率

4P：電機級數

122.48：減速機傳動比

M2：減速機安裝位置

270°：接線盒位置

K129減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K129減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K129減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K129減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K129減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K129減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K129減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K129減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K129減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K129減速器故障售后服務統籌：

K129減速器潤滑油泄露：K129減速器密封面密封性能不良，擰緊K129減速器蓋上的螺釘并觀察K129減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K129減速器透氣閥失效，給K129減速器透氣參見“K129減速器說明書的安裝位置”章節。齒輪減速電機

K129減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K129減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K129減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K129減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K129減速器說明書的檢查/維護”章節；K129減速器安裝位置錯誤，正確安裝透氣閥參見“K129減速器說明書的安裝位置”章節，調節油位參見“K129減速器說明書的檢查/維護”章節。

K129減速器電機或輸入軸轉動，而輸出軸不轉：K129減速器中的軸輪轂聯接斷裂，將K129減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K129減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K129減速器型號：
