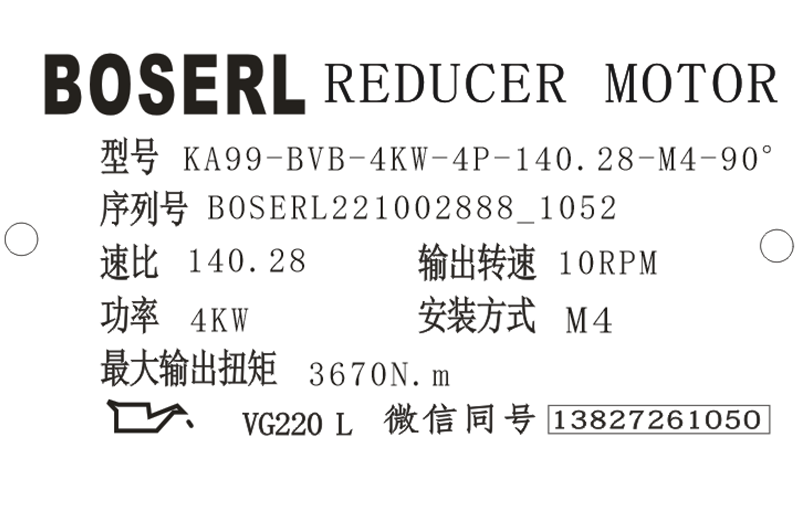

KA99減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA99減速器選型樣本。

KA99-BVB-4KW-4P-140.28-M4-90°

KA：系列代號

99：減速機規格代號

BVB：電機

4KW：電機功率

4P：電機級數

140.28：減速機傳動比

M4：減速機安裝位置

90°：接線盒位置

KA99減速器逆止器安裝：

KA99減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA99減速器潤滑油更換：

由于KA99減速器發熱或KA99減速器油溫過高可能引起燙傷，對KA99減速器進行操作前先冷卻，KA99減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA99減速器電機型號：

XDKA97-Y1.1KWA，XDKA97-Y1.5KWA，XDKA97-Y100M4，XDKA97-Y112M4，XDKA97-Y11KWA，XDKA97-Y132M4，XDKA97-Y15KWA，XDKA97-Y160M4，XDKA97-Y18.5KWA，XDKA97-Y180M4，XDKA97-Y2.2KWA，XDKA97-Y200M4，XDKA97-Y22KWA，XDKA97-Y30KWA，XDKA97-Y3KWA，XDKA97-Y4KWA，XDKA97-Y5.5KWA，XDKA97-Y7.5KWA，XDKA97-Y80M4，XDKA97-Y90M4，XDKA97-YB100M4，XDKA97-YB112M4，XDKA97-YB132M4，XDKA97-YB160M4，XDKA97-YB180M4，XDKA97-YB200M4，XDKA97-YB80M4，XDKA97-YB90M4，XDKA97-YDP100M4，XDKA97-YDP112M4，XDKA97-YDP132M4，XDKA97-YDP160M4，XDKA97-YDP180M4，XDKA97-YDP200M4，XDKA97-YDP80M4，XDKA97-YDP90M4，XDKA97-YE100M4，XDKA97-YE112M4，XDKA97-YE132M4，XDKA97-YE160M4，XDKA97-YE180M4，XDKA97-YE200M4，XDKA97-YE80M4，XDKA97-YE90M4，XDKA97-YEJ100M4，XDKA97-YEJ112M4，XDKA97-YEJ132M4，XDKA97-YEJ160M4，XDKA97-YEJ180M4，XDKA97-YEJ200M4，XDKA97-YEJ80M4，XDKA97-YEJ90M4，XDKA97-YEJB100M4，XDKA97-YEJB112M4，XDKA97-YEJB132M4，XDKA97-YEJB160M4，XDKA97-YEJB180M4，XDKA97-YEJB200M4，XDKA97-YEJB80M4，XDKA97-YEJB90M4，XDKA97-YP100M4，XDKA97-YP112M4，XDKA97-YP132M4，XDKA97-YP160M4，XDKA97-YP180M4，XDKA97-YP200M4，XDKA97-YP80M4，XDKA97-YP90M4，XDKA97-YPB100M4，XDKA97-YPB112M4，XDKA97-YPB132M4，XDKA97-YPB160M4，XDKA97-YPB180M4，XDKA97-YPB200M4，XDKA97-YPB80M4，XDKA97-YPB90M4，XDKA97-YPE100M4，XDKA97-YPE112M4，XDKA97-YPE132M4，XDKA97-YPE160M4，XDKA97-YPE180M4，XDKA97-YPE200M4，XDKA97-YPE80M4，XDKA97-YPE90M4，XDKA97-YS100M4，XDKA97-YS112M4，XDKA97-YS132M4，XDKA97-YS160M4，XDKA97-YS180M4，XDKA97-YS200M4，XDKA97-YS80M4，XDKA97-YS90M4，XDKA97-YVB100M4，XDKA97-YVB112M4，XDKA97-YVB132M4，XDKA97-YVB160M4，XDKA97-YVB180M4，XDKA97-YVB200M4，XDKA97-YVB80M4，XDKA97-YVB90M4，XDKA97-YVP100M4，XDKA97-YVP112M4，XDKA97-YVP132M4，XDKA97-YVP160M4，XDKA97-YVP180M4，XDKA97-YVP200M4，XDKA97-YVP80M4，XDKA97-YVP90M4，XDKA97-YVPEJ100M4，XDKA97-YVPEJ112M4，XDKA97-YVPEJ132M4，XDKA97-YVPEJ160M4，XDKA97-YVPEJ180M4，XDKA97-YVPEJ200M4，XDKA97-YVPEJ80M4，XDKA97-YVPEJ90M4，KWA97-Y1.1KWA，KWA97-Y1.5KWA，KWA97-Y100M4，KWA97-Y112M4，KWA97-Y11KWA，KWA97-Y132M4，KWA97-Y15KWA，KWA97-Y160M4，KWA97-Y18.5KWA，KWA97-Y180M4，KWA97-Y2.2KWA，KWA97-Y200M4，KWA97-Y22KWA，KWA97-Y30KWA，KWA97-Y3KWA，KWA97-Y4KWA，KWA97-Y5.5KWA，KWA97-Y7.5KWA，KWA97-Y80M4，KWA97-Y90M4，KWA97-YB100M4，KWA97-YB112M4，KWA97-YB132M4，KWA97-YB160M4，KWA97-YB180M4，KWA97-YB200M4，KWA97-YB80M4，KWA97-YB90M4，KWA97-YDP100M4，KWA97-YDP112M4，KWA97-YDP132M4，KWA97-YDP160M4，KWA97-YDP180M4，KWA97-YDP200M4，KWA97-YDP80M4，KWA97-YDP90M4，KWA97-YE100M4，KWA97-YE112M4，KWA97-YE132M4，KWA97-YE160M4，KWA97-YE180M4，KWA97-YE200M4，KWA97-YE80M4，KWA97-YE90M4，KWA97-YEJ100M4，KWA97-YEJ112M4，KWA97-YEJ132M4，KWA97-YEJ160M4，KWA97-YEJ180M4，KWA97-YEJ200M4，KWA97-YEJ80M4，KWA97-YEJ90M4，KWA97-YEJB100M4，KWA97-YEJB112M4，KWA97-YEJB132M4，KWA97-YEJB160M4，KWA97-YEJB180M4，KWA97-YEJB200M4，KWA97-YEJB80M4，KWA97-YEJB90M4，KWA97-YP100M4，KWA97-YP112M4，KWA97-YP132M4，KWA97-YP160M4，KWA97-YP180M4，KWA97-YP200M4，KWA97-YP80M4，KWA97-YP90M4，KWA97-YPB100M4，KWA97-YPB112M4，KWA97-YPB132M4，KWA97-YPB160M4，KWA97-YPB180M4，KWA97-YPB200M4，KWA97-YPB80M4，KWA97-YPB90M4，KWA97-YPE100M4，KWA97-YPE112M4，KWA97-YPE132M4，KWA97-YPE160M4，KWA97-YPE180M4，KWA97-YPE200M4，KWA97-YPE80M4，KWA97-YPE90M4，KWA97-YS100M4，KWA97-YS112M4，KWA97-YS132M4，KWA97-YS160M4，KWA97-YS180M4，KWA97-YS200M4，KWA97-YS80M4，KWA97-YS90M4，KWA97-YVB100M4，KWA97-YVB112M4，KWA97-YVB132M4，KWA97-YVB160M4，KWA97-YVB180M4，KWA97-YVB200M4，KWA97-YVB80M4，KWA97-YVB90M4，KWA97-YVP100M4，KWA97-YVP112M4，KWA97-YVP132M4，KWA97-YVP160M4，KWA97-YVP180M4，KWA97-YVP200M4，KWA97-YVP80M4，KWA97-YVP90M4，KWA97-YVPEJ100M4，KWA97-YVPEJ112M4，KWA97-YVPEJ132M4，KWA97-YVPEJ160M4，KWA97-YVPEJ180M4，KWA97-YVPEJ200M4，KWA97-YVPEJ80M4，KWA97-YVPEJ90M4，YQKA97-Y1.1KWA，YQKA97-Y1.5KWA，YQKA97-Y100M4，YQKA97-Y112M4，YQKA97-Y11KWA，YQKA97-Y132M4，YQKA97-Y15KWA，YQKA97-Y160M4，YQKA97-Y18.5KWA，YQKA97-Y180M4，YQKA97-Y2.2KWA，YQKA97-Y200M4，YQKA97-Y22KWA，YQKA97-Y30KWA，YQKA97-Y3KWA，YQKA97-Y4KWA，YQKA97-Y5.5KWA，YQKA97-Y7.5KWA，YQKA97-Y80M4，YQKA97-Y90M4，YQKA97-YB100M4，YQKA97-YB112M4，YQKA97-YB132M4，YQKA97-YB160M4，YQKA97-YB180M4，YQKA97-YB200M4，YQKA97-YB80M4，YQKA97-YB90M4，YQKA97-YDP100M4，YQKA97-YDP112M4，YQKA97-YDP132M4，YQKA97-YDP160M4，YQKA97-YDP180M4，YQKA97-YDP200M4，YQKA97-YDP80M4，YQKA97-YDP90M4，YQKA97-YE100M4，YQKA97-YE112M4，YQKA97-YE132M4，YQKA97-YE160M4，YQKA97-YE180M4，YQKA97-YE200M4，YQKA97-YE80M4，YQKA97-YE90M4，YQKA97-YEJ100M4，YQKA97-YEJ112M4，YQKA97-YEJ132M4，YQKA97-YEJ160M4，YQKA97-YEJ180M4，YQKA97-YEJ200M4，YQKA97-YEJ80M4，YQKA97-YEJ90M4，YQKA97-YEJB100M4，YQKA97-YEJB112M4，YQKA97-YEJB132M4，YQKA97-YEJB160M4，YQKA97-YEJB180M4，YQKA97-YEJB200M4，YQKA97-YEJB80M4，YQKA97-YEJB90M4，YQKA97-YP100M4，YQKA97-YP112M4，YQKA97-YP132M4，YQKA97-YP160M4，YQKA97-YP180M4，YQKA97-YP200M4，YQKA97-YP80M4，YQKA97-YP90M4，YQKA97-YPB100M4，YQKA97-YPB112M4，YQKA97-YPB132M4，YQKA97-YPB160M4，YQKA97-YPB180M4，YQKA97-YPB200M4，YQKA97-YPB80M4，YQKA97-YPB90M4，YQKA97-YPE100M4，YQKA97-YPE112M4，YQKA97-YPE132M4，YQKA97-YPE160M4，YQKA97-YPE180M4，YQKA97-YPE200M4，YQKA97-YPE80M4，YQKA97-YPE90M4，YQKA97-YS100M4，YQKA97-YS112M4，YQKA97-YS132M4，YQKA97-YS160M4，YQKA97-YS180M4，YQKA97-YS200M4，YQKA97-YS80M4，YQKA97-YS90M4，YQKA97-YVB100M4，YQKA97-YVB112M4，YQKA97-YVB132M4，YQKA97-YVB160M4，YQKA97-YVB180M4，YQKA97-YVB200M4，YQKA97-YVB80M4，YQKA97-YVB90M4，YQKA97-YVP100M4，YQKA97-YVP112M4，YQKA97-YVP132M4，YQKA97-YVP160M4，YQKA97-YVP180M4，YQKA97-YVP200M4，YQKA97-YVP80M4，YQKA97-YVP90M4，YQKA97-YVPEJ100M4，YQKA97-YVPEJ112M4，YQKA97-YVPEJ132M4，YQKA97-YVPEJ160M4，YQKA97-YVPEJ180M4，YQKA97-YVPEJ200M4，YQKA97-YVPEJ80M4，YQKA97-YVPEJ90M4，JCKA97-Y1.1KWA，JCKA97-Y1.5KWA，JCKA97-Y100M4，JCKA97-Y112M4，JCKA97-Y11KWA，JCKA97-Y132M4，JCKA97-Y15KWA，JCKA97-Y160M4，JCKA97-Y18.5KWA，JCKA97-Y180M4，JCKA97-Y2.2KWA，JCKA97-Y200M4，JCKA97-Y22KWA，JCKA97-Y30KWA，JCKA97-Y3KWA，JCKA97-Y4KWA，JCKA97-Y5.5KWA，JCKA97-Y7.5KWA，JCKA97-Y80M4，JCKA97-Y90M4，JCKA97-YB100M4，JCKA97-YB112M4，JCKA97-YB132M4，JCKA97-YB160M4，JCKA97-YB180M4，JCKA97-YB200M4，JCKA97-YB80M4，JCKA97-YB90M4，JCKA97-YDP100M4，JCKA97-YDP112M4，JCKA97-YDP132M4，JCKA97-YDP160M4，JCKA97-YDP180M4，JCKA97-YDP200M4，JCKA97-YDP80M4，JCKA97-YDP90M4，JCKA97-YE100M4，JCKA97-YE112M4，JCKA97-YE132M4，JCKA97-YE160M4，JCKA97-YE180M4，JCKA97-YE200M4，JCKA97-YE80M4，JCKA97-YE90M4，JCKA97-YEJ100M4，JCKA97-YEJ112M4，JCKA97-YEJ132M4，JCKA97-YEJ160M4，JCKA97-YEJ180M4，JCKA97-YEJ200M4，JCKA97-YEJ80M4，JCKA97-YEJ90M4，JCKA97-YEJB100M4，JCKA97-YEJB112M4，JCKA97-YEJB132M4，JCKA97-YEJB160M4，JCKA97-YEJB180M4，JCKA97-YEJB200M4，JCKA97-YEJB80M4，JCKA97-YEJB90M4，JCKA97-YP100M4，JCKA97-YP112M4，JCKA97-YP132M4，JCKA97-YP160M4，JCKA97-YP180M4，JCKA97-YP200M4，JCKA97-YP80M4，JCKA97-YP90M4，JCKA97-YPB100M4，JCKA97-YPB112M4，JCKA97-YPB132M4，JCKA97-YPB160M4，JCKA97-YPB180M4，JCKA97-YPB200M4，JCKA97-YPB80M4，JCKA97-YPB90M4，JCKA97-YPE100M4，JCKA97-YPE112M4，JCKA97-YPE132M4，JCKA97-YPE160M4，JCKA97-YPE180M4，JCKA97-YPE200M4，JCKA97-YPE80M4，JCKA97-YPE90M4，JCKA97-YS100M4，JCKA97-YS112M4，JCKA97-YS132M4，JCKA97-YS160M4，JCKA97-YS180M4，JCKA97-YS200M4，JCKA97-YS80M4，JCKA97-YS90M4，JCKA97-YVB100M4，JCKA97-YVB112M4，JCKA97-YVB132M4，JCKA97-YVB160M4，JCKA97-YVB180M4，JCKA97-YVB200M4，JCKA97-YVB80M4，JCKA97-YVB90M4，JCKA97-YVP100M4，JCKA97-YVP112M4，JCKA97-YVP132M4，JCKA97-YVP160M4，JCKA97-YVP180M4，JCKA97-YVP200M4，JCKA97-YVP80M4，JCKA97-YVP90M4，JCKA97-YVPEJ100M4，JCKA97-YVPEJ112M4，JCKA97-YVPEJ132M4，JCKA97-YVPEJ160M4，JCKA97-YVPEJ180M4，JCKA97-YVPEJ200M4，JCKA97-YVPEJ80M4，JCKA97-YVPEJ90M4，KA99-Y1.1KWA，KA99-Y1.5KWA，KA99-Y100M4，KA99-Y112M4，KA99-Y11KWA，KA99-Y132M4，KA99-Y15KWA，KA99-Y160M4，KA99-Y18.5KWA，KA99-Y180M4，KA99-Y2.2KWA，KA99-Y200M4，KA99-Y22KWA，KA99-Y30KWA，KA99-Y3KWA，KA99-Y4KWA，KA99-Y5.5KWA，KA99-Y7.5KWA，KA99-Y80M4，KA99-Y90M4，KA99-YB100M4，KA99-YB112M4，KA99-YB132M4，KA99-YB160M4，KA99-YB180M4，KA99-YB200M4，KA99-YB80M4，KA99-YB90M4，KA99-YDP100M4，KA99-YDP112M4，KA99-YDP132M4，KA99-YDP160M4，KA99-YDP180M4，KA99-YDP200M4，KA99-YDP80M4，KA99-YDP90M4，KA99-YE100M4，KA99-YE112M4，KA99-YE132M4，KA99-YE160M4，KA99-YE180M4，KA99-YE200M4，KA99-YE80M4，KA99-YE90M4，KA99-YEJ100M4，KA99-YEJ112M4，KA99-YEJ132M4，KA99-YEJ160M4，KA99-YEJ180M4，KA99-YEJ200M4，KA99-YEJ80M4，KA99-YEJ90M4，KA99-YEJB100M4，KA99-YEJB112M4，KA99-YEJB132M4，KA99-YEJB160M4，KA99-YEJB180M4，KA99-YEJB200M4，KA99-YEJB80M4，KA99-YEJB90M4，KA99-YP100M4，KA99-YP112M4，KA99-YP132M4，KA99-YP160M4，KA99-YP180M4，KA99-YP200M4，KA99-YP80M4，KA99-YP90M4，KA99-YPB100M4，KA99-YPB112M4，KA99-YPB132M4，KA99-YPB160M4，KA99-YPB180M4，KA99-YPB200M4，KA99-YPB80M4，KA99-YPB90M4，KA99-YPE100M4，KA99-YPE112M4，KA99-YPE132M4，KA99-YPE160M4，KA99-YPE180M4，KA99-YPE200M4，KA99-YPE80M4，KA99-YPE90M4，KA99-YS100M4，KA99-YS112M4，KA99-YS132M4，KA99-YS160M4，KA99-YS180M4，KA99-YS200M4，KA99-YS80M4，KA99-YS90M4，KA99-YVB100M4，KA99-YVB112M4，KA99-YVB132M4，KA99-YVB160M4，KA99-YVB180M4，KA99-YVB200M4，KA99-YVB80M4，KA99-YVB90M4，KA99-YVP100M4，KA99-YVP112M4，KA99-YVP132M4，KA99-YVP160M4，KA99-YVP180M4，KA99-YVP200M4，KA99-YVP80M4，KA99-YVP90M4，KA99-YVPEJ100M4，KA99-YVPEJ112M4，KA99-YVPEJ132M4，KA99-YVPEJ160M4，KA99-YVPEJ180M4，KA99-YVPEJ200M4，KA99-YVPEJ80M4，KA99-YVPEJ90M4，KA97SF80，KA97SF90，KA97SF100，KA97SF112，KA97SF115，KA97SF140，KA97SF160，KA97SF190。
