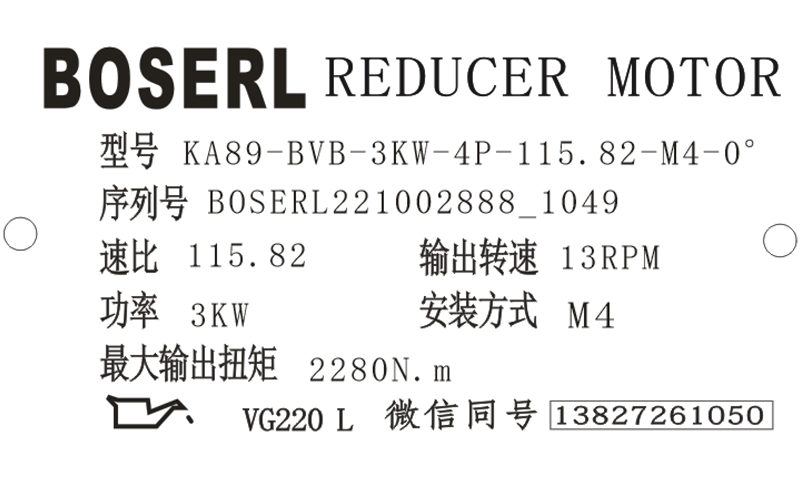

KA89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA89減速器選型樣本。

KA89-BVB-3KW-4P-115.82-M4-0°

KA：系列代號

89：減速機規格代號

BVB：電機

3KW：電機功率

4P：電機級數

115.82：減速機傳動比

M4：減速機安裝位置

0°：接線盒位置

KA89減速器逆止器安裝：

KA89減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA89減速器潤滑油更換：

由于KA89減速器發熱或KA89減速器油溫過高可能引起燙傷，對KA89減速器進行操作前先冷卻，KA89減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA89減速器電機型號：

KWA87-Y0.37KWA，KWA87-Y0.55KWA，KWA87-Y0.75KWA，KWA87-Y1.1KWA，KWA87-Y1.5KWA，KWA87-Y100M4，KWA87-Y112M4，KWA87-Y11KWA，KWA87-Y132M4，KWA87-Y15KWA，KWA87-Y160M4，KWA87-Y18.5KWA，KWA87-Y180M4，KWA87-Y2.2KWA，KWA87-Y200M4，KWA87-Y22KWA，KWA87-Y3KWA，KWA87-Y4KWA，KWA87-Y5.5KWA，KWA87-Y7.5KWA，KWA87-Y71M4，KWA87-Y80M4，KWA87-Y90M4，KWA87-YB100M4，KWA87-YB112M4，KWA87-YB132M4，KWA87-YB160M4，KWA87-YB180M4，KWA87-YB200M4，KWA87-YB71M4，KWA87-YB80M4，KWA87-YB90M4，KWA87-YDP100M4，KWA87-YDP112M4，KWA87-YDP132M4，KWA87-YDP160M4，KWA87-YDP180M4，KWA87-YDP200M4，KWA87-YDP71M4，KWA87-YDP80M4，KWA87-YDP90M4，KWA87-YE100M4，KWA87-YE112M4，KWA87-YE132M4，KWA87-YE160M4，KWA87-YE180M4，KWA87-YE200M4，KWA87-YE71M4，KWA87-YE80M4，KWA87-YE90M4，KWA87-YEJ100M4，KWA87-YEJ112M4，KWA87-YEJ132M4，KWA87-YEJ160M4，KWA87-YEJ180M4，KWA87-YEJ200M4，KWA87-YEJ71M4，KWA87-YEJ80M4，KWA87-YEJ90M4，KWA87-YEJB100M4，KWA87-YEJB112M4，KWA87-YEJB132M4，KWA87-YEJB160M4，KWA87-YEJB180M4，KWA87-YEJB200M4，KWA87-YEJB71M4，KWA87-YEJB80M4，KWA87-YEJB90M4，KWA87-YP100M4，KWA87-YP112M4，KWA87-YP132M4，KWA87-YP160M4，KWA87-YP180M4，KWA87-YP200M4，KWA87-YP71M4，KWA87-YP80M4，KWA87-YP90M4，KWA87-YPB100M4，KWA87-YPB112M4，KWA87-YPB132M4，KWA87-YPB160M4，KWA87-YPB180M4，KWA87-YPB200M4，KWA87-YPB71M4，KWA87-YPB80M4，KWA87-YPB90M4，KWA87-YPE100M4，KWA87-YPE112M4，KWA87-YPE132M4，KWA87-YPE160M4，KWA87-YPE180M4，KWA87-YPE200M4，KWA87-YPE71M4，KWA87-YPE80M4，KWA87-YPE90M4，KWA87-YS100M4，KWA87-YS112M4，KWA87-YS132M4，KWA87-YS160M4，KWA87-YS180M4，KWA87-YS200M4，KWA87-YS71M4，KWA87-YS80M4，KWA87-YS90M4，KWA87-YVB100M4，KWA87-YVB112M4，KWA87-YVB132M4，KWA87-YVB160M4，KWA87-YVB180M4，KWA87-YVB200M4，KWA87-YVB71M4，KWA87-YVB80M4，KWA87-YVB90M4，KWA87-YVP100M4，KWA87-YVP112M4，KWA87-YVP132M4，KWA87-YVP160M4，KWA87-YVP180M4，KWA87-YVP200M4，KWA87-YVP71M4，KWA87-YVP80M4，KWA87-YVP90M4，KWA87-YVPEJ100M4，KWA87-YVPEJ112M4，KWA87-YVPEJ132M4，KWA87-YVPEJ160M4，KWA87-YVPEJ180M4，KWA87-YVPEJ200M4，KWA87-YVPEJ71M4，KWA87-YVPEJ80M4，KWA87-YVPEJ90M4，XDKA87-Y0.37KWA，XDKA87-Y0.55KWA，XDKA87-Y0.75KWA，XDKA87-Y1.1KWA，XDKA87-Y1.5KWA，XDKA87-Y100M4，XDKA87-Y112M4，XDKA87-Y11KWA，XDKA87-Y132M4，XDKA87-Y15KWA，XDKA87-Y160M4，XDKA87-Y18.5KWA，XDKA87-Y180M4，XDKA87-Y2.2KWA，XDKA87-Y200M4，XDKA87-Y22KWA，XDKA87-Y3KWA，XDKA87-Y4KWA，XDKA87-Y5.5KWA，XDKA87-Y7.5KWA，XDKA87-Y71M4，XDKA87-Y80M4，XDKA87-Y90M4，XDKA87-YB100M4，XDKA87-YB112M4，XDKA87-YB132M4，XDKA87-YB160M4，XDKA87-YB180M4，XDKA87-YB200M4，XDKA87-YB71M4，XDKA87-YB80M4，XDKA87-YB90M4，XDKA87-YDP100M4，XDKA87-YDP112M4，XDKA87-YDP132M4，XDKA87-YDP160M4，XDKA87-YDP180M4，XDKA87-YDP200M4，XDKA87-YDP71M4，XDKA87-YDP80M4，XDKA87-YDP90M4，XDKA87-YE100M4，XDKA87-YE112M4，XDKA87-YE132M4，XDKA87-YE160M4，XDKA87-YE180M4，XDKA87-YE200M4，XDKA87-YE71M4，XDKA87-YE80M4，XDKA87-YE90M4，XDKA87-YEJ100M4，XDKA87-YEJ112M4，XDKA87-YEJ132M4，XDKA87-YEJ160M4，XDKA87-YEJ180M4，XDKA87-YEJ200M4，XDKA87-YEJ71M4，XDKA87-YEJ80M4，XDKA87-YEJ90M4，XDKA87-YEJB100M4，XDKA87-YEJB112M4，XDKA87-YEJB132M4，XDKA87-YEJB160M4，XDKA87-YEJB180M4，XDKA87-YEJB200M4，XDKA87-YEJB71M4，XDKA87-YEJB80M4，XDKA87-YEJB90M4，XDKA87-YP100M4，XDKA87-YP112M4，XDKA87-YP132M4，XDKA87-YP160M4，XDKA87-YP180M4，XDKA87-YP200M4，XDKA87-YP71M4，XDKA87-YP80M4，XDKA87-YP90M4，XDKA87-YPB100M4，XDKA87-YPB112M4，XDKA87-YPB132M4，XDKA87-YPB160M4，XDKA87-YPB180M4，XDKA87-YPB200M4，XDKA87-YPB71M4，XDKA87-YPB80M4，XDKA87-YPB90M4，XDKA87-YPE100M4，XDKA87-YPE112M4，XDKA87-YPE132M4，XDKA87-YPE160M4，XDKA87-YPE180M4，XDKA87-YPE200M4，XDKA87-YPE71M4，XDKA87-YPE80M4，XDKA87-YPE90M4，XDKA87-YS100M4，XDKA87-YS112M4，XDKA87-YS132M4，XDKA87-YS160M4，XDKA87-YS180M4，XDKA87-YS200M4，XDKA87-YS71M4，XDKA87-YS80M4，XDKA87-YS90M4，XDKA87-YVB100M4，XDKA87-YVB112M4，XDKA87-YVB132M4，XDKA87-YVB160M4，XDKA87-YVB180M4，XDKA87-YVB200M4，XDKA87-YVB71M4，XDKA87-YVB80M4，XDKA87-YVB90M4，XDKA87-YVP100M4，XDKA87-YVP112M4，XDKA87-YVP132M4，XDKA87-YVP160M4，XDKA87-YVP180M4，XDKA87-YVP200M4，XDKA87-YVP71M4，XDKA87-YVP80M4，XDKA87-YVP90M4，XDKA87-YVPEJ100M4，XDKA87-YVPEJ112M4，XDKA87-YVPEJ132M4，XDKA87-YVPEJ160M4，XDKA87-YVPEJ180M4，XDKA87-YVPEJ200M4，XDKA87-YVPEJ71M4，XDKA87-YVPEJ80M4，XDKA87-YVPEJ90M4，YQKA87-Y0.37KWA，YQKA87-Y0.55KWA，YQKA87-Y0.75KWA，YQKA87-Y1.1KWA，YQKA87-Y1.5KWA，YQKA87-Y100M4，YQKA87-Y112M4，YQKA87-Y11KWA，YQKA87-Y132M4，YQKA87-Y15KWA，YQKA87-Y160M4，YQKA87-Y18.5KWA，YQKA87-Y180M4，YQKA87-Y2.2KWA，YQKA87-Y200M4，YQKA87-Y22KWA，YQKA87-Y3KWA，YQKA87-Y4KWA，YQKA87-Y5.5KWA，YQKA87-Y7.5KWA，YQKA87-Y71M4，YQKA87-Y80M4，YQKA87-Y90M4，YQKA87-YB100M4，YQKA87-YB112M4，YQKA87-YB132M4，YQKA87-YB160M4，YQKA87-YB180M4，YQKA87-YB200M4，YQKA87-YB71M4，YQKA87-YB80M4，YQKA87-YB90M4，YQKA87-YDP100M4，YQKA87-YDP112M4，YQKA87-YDP132M4，YQKA87-YDP160M4，YQKA87-YDP180M4，YQKA87-YDP200M4，YQKA87-YDP71M4，YQKA87-YDP80M4，YQKA87-YDP90M4，YQKA87-YE100M4，YQKA87-YE112M4，YQKA87-YE132M4，YQKA87-YE160M4，YQKA87-YE180M4，YQKA87-YE200M4，YQKA87-YE71M4，YQKA87-YE80M4，YQKA87-YE90M4，YQKA87-YEJ100M4，YQKA87-YEJ112M4，YQKA87-YEJ132M4，YQKA87-YEJ160M4，YQKA87-YEJ180M4，YQKA87-YEJ200M4，YQKA87-YEJ71M4，YQKA87-YEJ80M4，YQKA87-YEJ90M4，YQKA87-YEJB100M4，YQKA87-YEJB112M4，YQKA87-YEJB132M4，YQKA87-YEJB160M4，YQKA87-YEJB180M4，YQKA87-YEJB200M4，YQKA87-YEJB71M4，YQKA87-YEJB80M4，YQKA87-YEJB90M4，YQKA87-YP100M4，YQKA87-YP112M4，YQKA87-YP132M4，YQKA87-YP160M4，YQKA87-YP180M4，YQKA87-YP200M4，YQKA87-YP71M4，YQKA87-YP80M4，YQKA87-YP90M4，YQKA87-YPB100M4，YQKA87-YPB112M4，YQKA87-YPB132M4，YQKA87-YPB160M4，YQKA87-YPB180M4，YQKA87-YPB200M4，YQKA87-YPB71M4，YQKA87-YPB80M4，YQKA87-YPB90M4，YQKA87-YPE100M4，YQKA87-YPE112M4，YQKA87-YPE132M4，YQKA87-YPE160M4，YQKA87-YPE180M4，YQKA87-YPE200M4，YQKA87-YPE71M4，YQKA87-YPE80M4，YQKA87-YPE90M4，YQKA87-YS100M4，YQKA87-YS112M4，YQKA87-YS132M4，YQKA87-YS160M4，YQKA87-YS180M4，YQKA87-YS200M4，YQKA87-YS71M4，YQKA87-YS80M4，YQKA87-YS90M4，YQKA87-YVB100M4，YQKA87-YVB112M4，YQKA87-YVB132M4，YQKA87-YVB160M4，YQKA87-YVB180M4，YQKA87-YVB200M4，YQKA87-YVB71M4，YQKA87-YVB80M4，YQKA87-YVB90M4，YQKA87-YVP100M4，YQKA87-YVP112M4，YQKA87-YVP132M4，YQKA87-YVP160M4，YQKA87-YVP180M4，YQKA87-YVP200M4，YQKA87-YVP71M4，YQKA87-YVP80M4，YQKA87-YVP90M4，YQKA87-YVPEJ100M4，YQKA87-YVPEJ112M4，YQKA87-YVPEJ132M4，YQKA87-YVPEJ160M4，YQKA87-YVPEJ180M4，YQKA87-YVPEJ200M4，YQKA87-YVPEJ71M4，YQKA87-YVPEJ80M4，YQKA87-YVPEJ90M4，JCKA87-Y0.37KWA，JCKA87-Y0.55KWA，JCKA87-Y0.75KWA，JCKA87-Y1.1KWA，JCKA87-Y1.5KWA，JCKA87-Y100M4，JCKA87-Y112M4，JCKA87-Y11KWA，JCKA87-Y132M4，JCKA87-Y15KWA，JCKA87-Y160M4，JCKA87-Y18.5KWA，JCKA87-Y180M4，JCKA87-Y2.2KWA，JCKA87-Y200M4，JCKA87-Y22KWA，JCKA87-Y3KWA，JCKA87-Y4KWA，JCKA87-Y5.5KWA，JCKA87-Y7.5KWA，JCKA87-Y71M4，JCKA87-Y80M4，JCKA87-Y90M4，JCKA87-YB100M4，JCKA87-YB112M4，JCKA87-YB132M4，JCKA87-YB160M4，JCKA87-YB180M4，JCKA87-YB200M4，JCKA87-YB71M4，JCKA87-YB80M4，JCKA87-YB90M4，JCKA87-YDP100M4，JCKA87-YDP112M4，JCKA87-YDP132M4，JCKA87-YDP160M4，JCKA87-YDP180M4，JCKA87-YDP200M4，JCKA87-YDP71M4，JCKA87-YDP80M4，JCKA87-YDP90M4，JCKA87-YE100M4，JCKA87-YE112M4，JCKA87-YE132M4，JCKA87-YE160M4，JCKA87-YE180M4，JCKA87-YE200M4，JCKA87-YE71M4，JCKA87-YE80M4，JCKA87-YE90M4，JCKA87-YEJ100M4，JCKA87-YEJ112M4，JCKA87-YEJ132M4，JCKA87-YEJ160M4，JCKA87-YEJ180M4，JCKA87-YEJ200M4，JCKA87-YEJ71M4，JCKA87-YEJ80M4，JCKA87-YEJ90M4，JCKA87-YEJB100M4，JCKA87-YEJB112M4，JCKA87-YEJB132M4，JCKA87-YEJB160M4，JCKA87-YEJB180M4，JCKA87-YEJB200M4，JCKA87-YEJB71M4，JCKA87-YEJB80M4，JCKA87-YEJB90M4，JCKA87-YP100M4，JCKA87-YP112M4，JCKA87-YP132M4，JCKA87-YP160M4，JCKA87-YP180M4，JCKA87-YP200M4，JCKA87-YP71M4，JCKA87-YP80M4，JCKA87-YP90M4，JCKA87-YPB100M4，JCKA87-YPB112M4，JCKA87-YPB132M4，JCKA87-YPB160M4，JCKA87-YPB180M4，JCKA87-YPB200M4，JCKA87-YPB71M4，JCKA87-YPB80M4，JCKA87-YPB90M4，JCKA87-YPE100M4，JCKA87-YPE112M4，JCKA87-YPE132M4，JCKA87-YPE160M4，JCKA87-YPE180M4，JCKA87-YPE200M4，JCKA87-YPE71M4，JCKA87-YPE80M4，JCKA87-YPE90M4，JCKA87-YS100M4，JCKA87-YS112M4，JCKA87-YS132M4，JCKA87-YS160M4，JCKA87-YS180M4，JCKA87-YS200M4，JCKA87-YS71M4，JCKA87-YS80M4，JCKA87-YS90M4，JCKA87-YVB100M4，JCKA87-YVB112M4，JCKA87-YVB132M4，JCKA87-YVB160M4，JCKA87-YVB180M4，JCKA87-YVB200M4，JCKA87-YVB71M4，JCKA87-YVB80M4，JCKA87-YVB90M4，JCKA87-YVP100M4，JCKA87-YVP112M4，JCKA87-YVP132M4，JCKA87-YVP160M4，JCKA87-YVP180M4，JCKA87-YVP200M4，JCKA87-YVP71M4，JCKA87-YVP80M4，JCKA87-YVP90M4，JCKA87-YVPEJ100M4，JCKA87-YVPEJ112M4，JCKA87-YVPEJ132M4，JCKA87-YVPEJ160M4，JCKA87-YVPEJ180M4，JCKA87-YVPEJ200M4，JCKA87-YVPEJ71M4，JCKA87-YVPEJ80M4，JCKA87-YVPEJ90M4，KA89-Y0.37KWA，KA89-Y0.55KWA，KA89-Y0.75KWA，KA89-Y1.1KWA，KA89-Y1.5KWA，KA89-Y100M4，KA89-Y112M4，KA89-Y11KWA，KA89-Y132M4，KA89-Y15KWA，KA89-Y160M4，KA89-Y18.5KWA，KA89-Y180M4，KA89-Y2.2KWA，KA89-Y200M4，KA89-Y22KWA，KA89-Y3KWA，KA89-Y4KWA，KA89-Y5.5KWA，KA89-Y7.5KWA，KA89-Y71M4，KA89-Y80M4，KA89-Y90M4，KA89-YB100M4，KA89-YB112M4，KA89-YB132M4，KA89-YB160M4，KA89-YB180M4，KA89-YB200M4，KA89-YB71M4，KA89-YB80M4，KA89-YB90M4，KA89-YDP100M4，KA89-YDP112M4，KA89-YDP132M4，KA89-YDP160M4，KA89-YDP180M4，KA89-YDP200M4，KA89-YDP71M4，KA89-YDP80M4，KA89-YDP90M4，KA89-YE100M4，KA89-YE112M4，KA89-YE132M4，KA89-YE160M4，KA89-YE180M4，KA89-YE200M4，KA89-YE71M4，KA89-YE80M4，KA89-YE90M4，KA89-YEJ100M4，KA89-YEJ112M4，KA89-YEJ132M4，KA89-YEJ160M4，KA89-YEJ180M4，KA89-YEJ200M4，KA89-YEJ71M4，KA89-YEJ80M4，KA89-YEJ90M4，KA89-YEJB100M4，KA89-YEJB112M4，KA89-YEJB132M4，KA89-YEJB160M4，KA89-YEJB180M4，KA89-YEJB200M4，KA89-YEJB71M4，KA89-YEJB80M4，KA89-YEJB90M4，KA89-YP100M4，KA89-YP112M4，KA89-YP132M4，KA89-YP160M4，KA89-YP180M4，KA89-YP200M4，KA89-YP71M4，KA89-YP80M4，KA89-YP90M4，KA89-YPB100M4，KA89-YPB112M4，KA89-YPB132M4，KA89-YPB160M4，KA89-YPB180M4，KA89-YPB200M4，KA89-YPB71M4，KA89-YPB80M4，KA89-YPB90M4，KA89-YPE100M4，KA89-YPE112M4，KA89-YPE132M4，KA89-YPE160M4，KA89-YPE180M4，KA89-YPE200M4，KA89-YPE71M4，KA89-YPE80M4，KA89-YPE90M4，KA89-YS100M4，KA89-YS112M4，KA89-YS132M4，KA89-YS160M4，KA89-YS180M4，KA89-YS200M4，KA89-YS71M4，KA89-YS80M4，KA89-YS90M4，KA89-YVB100M4，KA89-YVB112M4，KA89-YVB132M4，KA89-YVB160M4，KA89-YVB180M4，KA89-YVB200M4，KA89-YVB71M4，KA89-YVB80M4，KA89-YVB90M4，KA89-YVP100M4，KA89-YVP112M4，KA89-YVP132M4，KA89-YVP160M4，KA89-YVP180M4，KA89-YVP200M4，KA89-YVP71M4，KA89-YVP80M4，KA89-YVP90M4，KA89-YVPEJ100M4，KA89-YVPEJ112M4，KA89-YVPEJ132M4，KA89-YVPEJ160M4，KA89-YVPEJ180M4，KA89-YVPEJ200M4，KA89-YVPEJ71M4，KA89-YVPEJ80M4，KA89-YVPEJ90M4，KA87SF80，KA87SF90，KA87SF100，KA87SF112，KA87SF115，KA87SF140，KA87SF160，KA87SF190。

KA89減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.yayuyw.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K89減速機
