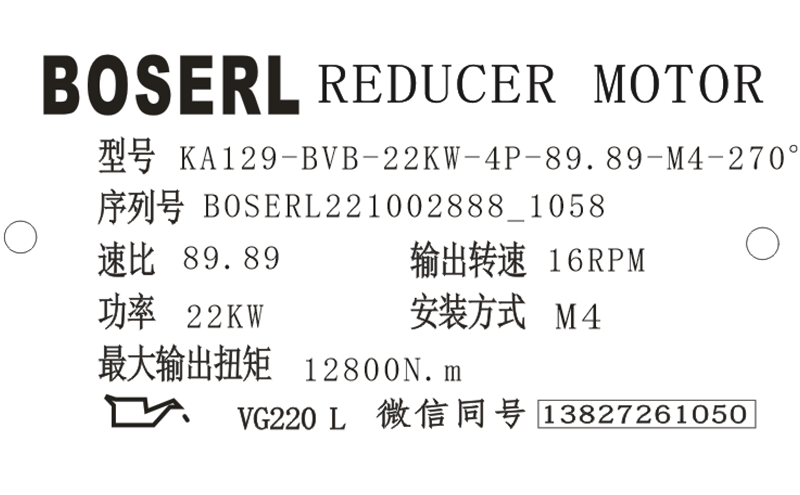

KA129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA129減速器選型樣本。

KA129-BVB-22KW-4P-89.89-M4-270°

KA：系列代號

129：減速機規格代號

BVB：電機

22KW：電機功率

4P：電機級數

89.89：減速機傳動比

M4：減速機安裝位置

270°：接線盒位置

KA129減速器逆止器安裝：

KA129減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA129減速器潤滑油更換：

由于KA129減速器發熱或KA129減速器油溫過高可能引起燙傷，對KA129減速器進行操作前先冷卻，KA129減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA129減速器電機型號：

KWA127-Y112M4，KWA127-Y11KWA，KWA127-Y132M4，KWA127-Y15KWA，KWA127-Y160M4，KWA127-Y18.5KWA，KWA127-Y180M4，KWA127-Y200M4，KWA127-Y225M4，KWA127-Y22KWA，KWA127-Y250M4，KWA127-Y280M4，KWA127-Y30KWA，KWA127-Y37KWA，KWA127-Y45KWA，KWA127-Y4KWA，KWA127-Y5.5KWA，KWA127-Y55KWA，KWA127-Y7.5KWA，KWA127-Y75KWA，KWA127-YB112M4，KWA127-YB132M4，KWA127-YB160M4，KWA127-YB180M4，KWA127-YB200M4，KWA127-YB225M4，KWA127-YB250M4，KWA127-YB280M4，KWA127-YDP112M4，KWA127-YDP132M4，KWA127-YDP160M4，KWA127-YDP180M4，KWA127-YDP200M4，KWA127-YDP225M4，KWA127-YDP250M4，KWA127-YDP280M4，KWA127-YE112M4，KWA127-YE132M4，KWA127-YE160M4，KWA127-YE180M4，KWA127-YE200M4，KWA127-YE225M4，KWA127-YE250M4，KWA127-YE280M4，KWA127-YEJ112M4，KWA127-YEJ132M4，KWA127-YEJ160M4，KWA127-YEJ180M4，KWA127-YEJ200M4，KWA127-YEJ225M4，KWA127-YEJ250M4，KWA127-YEJ280M4，KWA127-YEJB112M4，KWA127-YEJB132M4，KWA127-YEJB160M4，KWA127-YEJB180M4，KWA127-YEJB200M4，KWA127-YEJB225M4，KWA127-YEJB250M4，KWA127-YEJB280M4，KWA127-YP112M4，KWA127-YP132M4，KWA127-YP160M4，KWA127-YP180M4，KWA127-YP200M4，KWA127-YP225M4，KWA127-YP250M4，KWA127-YP280M4，KWA127-YPB112M4，KWA127-YPB132M4，KWA127-YPB160M4，KWA127-YPB180M4，KWA127-YPB200M4，KWA127-YPB225M4，KWA127-YPB250M4，KWA127-YPB280M4，KWA127-YPE112M4，KWA127-YPE132M4，KWA127-YPE160M4，KWA127-YPE180M4，KWA127-YPE200M4，KWA127-YPE225M4，KWA127-YPE250M4，KWA127-YPE280M4，KWA127-YS112M4，KWA127-YS132M4，KWA127-YS160M4，KWA127-YS180M4，KWA127-YS200M4，KWA127-YS225M4，KWA127-YS250M4，KWA127-YS280M4，KWA127-YVB112M4，KWA127-YVB132M4，KWA127-YVB160M4，KWA127-YVB180M4，KWA127-YVB200M4，KWA127-YVB225M4，KWA127-YVB250M4，KWA127-YVB280M4，KWA127-YVP112M4，KWA127-YVP132M4，KWA127-YVP160M4，KWA127-YVP180M4，KWA127-YVP200M4，KWA127-YVP225M4，KWA127-YVP250M4，KWA127-YVP280M4，KWA127-YVPEJ112M4，KWA127-YVPEJ132M4，KWA127-YVPEJ160M4，KWA127-YVPEJ180M4，KWA127-YVPEJ200M4，KWA127-YVPEJ225M4，KWA127-YVPEJ250M4，KWA127-YVPEJ280M4，XDKA127-Y112M4，XDKA127-Y11KWA，XDKA127-Y132M4，XDKA127-Y15KWA，XDKA127-Y160M4，XDKA127-Y18.5KWA，XDKA127-Y180M4，XDKA127-Y200M4，XDKA127-Y225M4，XDKA127-Y22KWA，XDKA127-Y250M4，XDKA127-Y280M4，XDKA127-Y30KWA，XDKA127-Y37KWA，XDKA127-Y45KWA，XDKA127-Y4KWA，XDKA127-Y5.5KWA，XDKA127-Y55KWA，XDKA127-Y7.5KWA，XDKA127-Y75KWA，XDKA127-YB112M4，XDKA127-YB132M4，XDKA127-YB160M4，XDKA127-YB180M4，XDKA127-YB200M4，XDKA127-YB225M4，XDKA127-YB250M4，XDKA127-YB280M4，XDKA127-YDP112M4，XDKA127-YDP132M4，XDKA127-YDP160M4，XDKA127-YDP180M4，XDKA127-YDP200M4，XDKA127-YDP225M4，XDKA127-YDP250M4，XDKA127-YDP280M4，XDKA127-YE112M4，XDKA127-YE132M4，XDKA127-YE160M4，XDKA127-YE180M4，XDKA127-YE200M4，XDKA127-YE225M4，XDKA127-YE250M4，XDKA127-YE280M4，XDKA127-YEJ112M4，XDKA127-YEJ132M4，XDKA127-YEJ160M4，XDKA127-YEJ180M4，XDKA127-YEJ200M4，XDKA127-YEJ225M4，XDKA127-YEJ250M4，XDKA127-YEJ280M4，XDKA127-YEJB112M4，XDKA127-YEJB132M4，XDKA127-YEJB160M4，XDKA127-YEJB180M4，XDKA127-YEJB200M4，XDKA127-YEJB225M4，XDKA127-YEJB250M4，XDKA127-YEJB280M4，XDKA127-YP112M4，XDKA127-YP132M4，XDKA127-YP160M4，XDKA127-YP180M4，XDKA127-YP200M4，XDKA127-YP225M4，XDKA127-YP250M4，XDKA127-YP280M4，XDKA127-YPB112M4，XDKA127-YPB132M4，XDKA127-YPB160M4，XDKA127-YPB180M4，XDKA127-YPB200M4，XDKA127-YPB225M4，XDKA127-YPB250M4，XDKA127-YPB280M4，XDKA127-YPE112M4，XDKA127-YPE132M4，XDKA127-YPE160M4，XDKA127-YPE180M4，XDKA127-YPE200M4，XDKA127-YPE225M4，XDKA127-YPE250M4，XDKA127-YPE280M4，XDKA127-YS112M4，XDKA127-YS132M4，XDKA127-YS160M4，XDKA127-YS180M4，XDKA127-YS200M4，XDKA127-YS225M4，XDKA127-YS250M4，XDKA127-YS280M4，XDKA127-YVB112M4，XDKA127-YVB132M4，XDKA127-YVB160M4，XDKA127-YVB180M4，XDKA127-YVB200M4，XDKA127-YVB225M4，XDKA127-YVB250M4，XDKA127-YVB280M4，XDKA127-YVP112M4，XDKA127-YVP132M4，XDKA127-YVP160M4，XDKA127-YVP180M4，XDKA127-YVP200M4，XDKA127-YVP225M4，XDKA127-YVP250M4，XDKA127-YVP280M4，XDKA127-YVPEJ112M4，XDKA127-YVPEJ132M4，XDKA127-YVPEJ160M4，XDKA127-YVPEJ180M4，XDKA127-YVPEJ200M4，XDKA127-YVPEJ225M4，XDKA127-YVPEJ250M4，XDKA127-YVPEJ280M4，YQKA127-Y112M4，YQKA127-Y11KWA，YQKA127-Y132M4，YQKA127-Y15KWA，YQKA127-Y160M4，YQKA127-Y18.5KWA，YQKA127-Y180M4，YQKA127-Y200M4，YQKA127-Y225M4，YQKA127-Y22KWA，YQKA127-Y250M4，YQKA127-Y280M4，YQKA127-Y30KWA，YQKA127-Y37KWA，YQKA127-Y45KWA，YQKA127-Y4KWA，YQKA127-Y5.5KWA，YQKA127-Y55KWA，YQKA127-Y7.5KWA，YQKA127-Y75KWA，YQKA127-YB112M4，YQKA127-YB132M4，YQKA127-YB160M4，YQKA127-YB180M4，YQKA127-YB200M4，YQKA127-YB225M4，YQKA127-YB250M4，YQKA127-YB280M4，YQKA127-YDP112M4，YQKA127-YDP132M4，YQKA127-YDP160M4，YQKA127-YDP180M4，YQKA127-YDP200M4，YQKA127-YDP225M4，YQKA127-YDP250M4，YQKA127-YDP280M4，YQKA127-YE112M4，YQKA127-YE132M4，YQKA127-YE160M4，YQKA127-YE180M4，YQKA127-YE200M4，YQKA127-YE225M4，YQKA127-YE250M4，YQKA127-YE280M4，YQKA127-YEJ112M4，YQKA127-YEJ132M4，YQKA127-YEJ160M4，YQKA127-YEJ180M4，YQKA127-YEJ200M4，YQKA127-YEJ225M4，YQKA127-YEJ250M4，YQKA127-YEJ280M4，YQKA127-YEJB112M4，YQKA127-YEJB132M4，YQKA127-YEJB160M4，YQKA127-YEJB180M4，YQKA127-YEJB200M4，YQKA127-YEJB225M4，YQKA127-YEJB250M4，YQKA127-YEJB280M4，YQKA127-YP112M4，YQKA127-YP132M4，YQKA127-YP160M4，YQKA127-YP180M4，YQKA127-YP200M4，YQKA127-YP225M4，YQKA127-YP250M4，YQKA127-YP280M4，YQKA127-YPB112M4，YQKA127-YPB132M4，YQKA127-YPB160M4，YQKA127-YPB180M4，YQKA127-YPB200M4，YQKA127-YPB225M4，YQKA127-YPB250M4，YQKA127-YPB280M4，YQKA127-YPE112M4，YQKA127-YPE132M4，YQKA127-YPE160M4，YQKA127-YPE180M4，YQKA127-YPE200M4，YQKA127-YPE225M4，YQKA127-YPE250M4，YQKA127-YPE280M4，YQKA127-YS112M4，YQKA127-YS132M4，YQKA127-YS160M4，YQKA127-YS180M4，YQKA127-YS200M4，YQKA127-YS225M4，YQKA127-YS250M4，YQKA127-YS280M4，YQKA127-YVB112M4，YQKA127-YVB132M4，YQKA127-YVB160M4，YQKA127-YVB180M4，YQKA127-YVB200M4，YQKA127-YVB225M4，YQKA127-YVB250M4，YQKA127-YVB280M4，YQKA127-YVP112M4，YQKA127-YVP132M4，YQKA127-YVP160M4，YQKA127-YVP180M4，YQKA127-YVP200M4，YQKA127-YVP225M4，YQKA127-YVP250M4，YQKA127-YVP280M4，YQKA127-YVPEJ112M4，YQKA127-YVPEJ132M4，YQKA127-YVPEJ160M4，YQKA127-YVPEJ180M4，YQKA127-YVPEJ200M4，YQKA127-YVPEJ225M4，YQKA127-YVPEJ250M4，YQKA127-YVPEJ280M4，JCKA127-Y112M4，JCKA127-Y11KWA，JCKA127-Y132M4，JCKA127-Y15KWA，JCKA127-Y160M4，JCKA127-Y18.5KWA，JCKA127-Y180M4，JCKA127-Y200M4，JCKA127-Y225M4，JCKA127-Y22KWA，JCKA127-Y250M4，JCKA127-Y280M4，JCKA127-Y30KWA，JCKA127-Y37KWA，JCKA127-Y45KWA，JCKA127-Y4KWA，JCKA127-Y5.5KWA，JCKA127-Y55KWA，JCKA127-Y7.5KWA，JCKA127-Y75KWA，JCKA127-YB112M4，JCKA127-YB132M4，JCKA127-YB160M4，JCKA127-YB180M4，JCKA127-YB200M4，JCKA127-YB225M4，JCKA127-YB250M4，JCKA127-YB280M4，JCKA127-YDP112M4，JCKA127-YDP132M4，JCKA127-YDP160M4，JCKA127-YDP180M4，JCKA127-YDP200M4，JCKA127-YDP225M4，JCKA127-YDP250M4，JCKA127-YDP280M4，JCKA127-YE112M4，JCKA127-YE132M4，JCKA127-YE160M4，JCKA127-YE180M4，JCKA127-YE200M4，JCKA127-YE225M4，JCKA127-YE250M4，JCKA127-YE280M4，JCKA127-YEJ112M4，JCKA127-YEJ132M4，JCKA127-YEJ160M4，JCKA127-YEJ180M4，JCKA127-YEJ200M4，JCKA127-YEJ225M4，JCKA127-YEJ250M4，JCKA127-YEJ280M4，JCKA127-YEJB112M4，JCKA127-YEJB132M4，JCKA127-YEJB160M4，JCKA127-YEJB180M4，JCKA127-YEJB200M4，JCKA127-YEJB225M4，JCKA127-YEJB250M4，JCKA127-YEJB280M4，JCKA127-YP112M4，JCKA127-YP132M4，JCKA127-YP160M4，JCKA127-YP180M4，JCKA127-YP200M4，JCKA127-YP225M4，JCKA127-YP250M4，JCKA127-YP280M4，JCKA127-YPB112M4，JCKA127-YPB132M4，JCKA127-YPB160M4，JCKA127-YPB180M4，JCKA127-YPB200M4，JCKA127-YPB225M4，JCKA127-YPB250M4，JCKA127-YPB280M4，JCKA127-YPE112M4，JCKA127-YPE132M4，JCKA127-YPE160M4，JCKA127-YPE180M4，JCKA127-YPE200M4，JCKA127-YPE225M4，JCKA127-YPE250M4，JCKA127-YPE280M4，JCKA127-YS112M4，JCKA127-YS132M4，JCKA127-YS160M4，JCKA127-YS180M4，JCKA127-YS200M4，JCKA127-YS225M4，JCKA127-YS250M4，JCKA127-YS280M4，JCKA127-YVB112M4，JCKA127-YVB132M4，JCKA127-YVB160M4，JCKA127-YVB180M4，JCKA127-YVB200M4，JCKA127-YVB225M4，JCKA127-YVB250M4，JCKA127-YVB280M4，JCKA127-YVP112M4，JCKA127-YVP132M4，JCKA127-YVP160M4，JCKA127-YVP180M4，JCKA127-YVP200M4，JCKA127-YVP225M4，JCKA127-YVP250M4，JCKA127-YVP280M4，JCKA127-YVPEJ112M4，JCKA127-YVPEJ132M4，JCKA127-YVPEJ160M4，JCKA127-YVPEJ180M4，JCKA127-YVPEJ200M4，JCKA127-YVPEJ225M4，JCKA127-YVPEJ250M4，JCKA127-YVPEJ280M4，KA129-Y112M4，KA129-Y11KWA，KA129-Y132M4，KA129-Y15KWA，KA129-Y160M4，KA129-Y18.5KWA，KA129-Y180M4，KA129-Y200M4，KA129-Y225M4，KA129-Y22KWA，KA129-Y250M4，KA129-Y280M4，KA129-Y30KWA，KA129-Y37KWA，KA129-Y45KWA，KA129-Y4KWA，KA129-Y5.5KWA，KA129-Y55KWA，KA129-Y7.5KWA，KA129-Y75KWA，KA129-YB112M4，KA129-YB132M4，KA129-YB160M4，KA129-YB180M4，KA129-YB200M4，KA129-YB225M4，KA129-YB250M4，KA129-YB280M4，KA129-YDP112M4，KA129-YDP132M4，KA129-YDP160M4，KA129-YDP180M4，KA129-YDP200M4，KA129-YDP225M4，KA129-YDP250M4，KA129-YDP280M4，KA129-YE112M4，KA129-YE132M4，KA129-YE160M4，KA129-YE180M4，KA129-YE200M4，KA129-YE225M4，KA129-YE250M4，KA129-YE280M4，KA129-YEJ112M4，KA129-YEJ132M4，KA129-YEJ160M4，KA129-YEJ180M4，KA129-YEJ200M4，KA129-YEJ225M4，KA129-YEJ250M4，KA129-YEJ280M4，KA129-YEJB112M4，KA129-YEJB132M4，KA129-YEJB160M4，KA129-YEJB180M4，KA129-YEJB200M4，KA129-YEJB225M4，KA129-YEJB250M4，KA129-YEJB280M4，KA129-YP112M4，KA129-YP132M4，KA129-YP160M4，KA129-YP180M4，KA129-YP200M4，KA129-YP225M4，KA129-YP250M4，KA129-YP280M4，KA129-YPB112M4，KA129-YPB132M4，KA129-YPB160M4，KA129-YPB180M4，KA129-YPB200M4，KA129-YPB225M4，KA129-YPB250M4，KA129-YPB280M4，KA129-YPE112M4，KA129-YPE132M4，KA129-YPE160M4，KA129-YPE180M4，KA129-YPE200M4，KA129-YPE225M4，KA129-YPE250M4，KA129-YPE280M4，KA129-YS112M4，KA129-YS132M4，KA129-YS160M4，KA129-YS180M4，KA129-YS200M4，KA129-YS225M4，KA129-YS250M4，KA129-YS280M4，KA129-YVB112M4，KA129-YVB132M4，KA129-YVB160M4，KA129-YVB180M4，KA129-YVB200M4，KA129-YVB225M4，KA129-YVB250M4，KA129-YVB280M4，KA129-YVP112M4，KA129-YVP132M4，KA129-YVP160M4，KA129-YVP180M4，KA129-YVP200M4，KA129-YVP225M4，KA129-YVP250M4，KA129-YVP280M4，KA129-YVPEJ112M4，KA129-YVPEJ132M4，KA129-YVPEJ160M4，KA129-YVPEJ180M4，KA129-YVPEJ200M4，KA129-YVPEJ225M4，KA129-YVPEJ250M4，KA129-YVPEJ280M4，KA127SF80，KA127SF90，KA127SF100，KA127SF112，KA127SF115，KA127SF140，KA127SF160，KA127SF190。

KA129減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.yayuyw.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K129減速機
