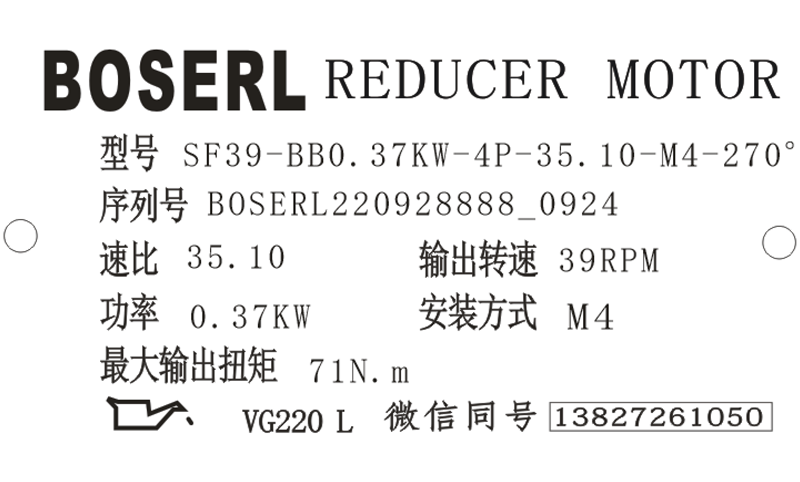

SF39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF39減速機選型樣本。

SF39-BB0.37KW-4P-35.10-M4-270°

SF：系列代號

39：減速機規格代號

BB：電機

0.37KW：電機功率

4P：電機級數

35.10：減速機傳動比

M4：減速機安裝位置

270°：接線盒位置

SF39減速機潤滑油型號：

SF39減速機推薦使用的潤滑油，其等級和粘度指標見下表：

SF39減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據SF39減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“SF39減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。齒輪減速電機

SF39減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的SF39減速機選型樣本中列出了安裝位置從M1到M6SF39減速機相應的潤滑油加注標準，請自行下載查看。

SF39減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。

SF39減速機使用說明：

SF39減速機注意事項：若未注入正確的SF39減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。伺服電機蝸輪蝸桿減速機

SF39減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見SF39減速機說明書安裝位置章節中的內容。

SF39減速機的螺母：立式安裝SF39減速機輸出法蘭螺母規格M6；SF39減速機螺母/螺母擰緊扭矩強度等級10.9。

SF39減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

SF39減速機警告說明：由于SF39減速機發熱或SF39減速機油溫過高可能引起燙傷；對SF39減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。自鎖減速機

SF39減速機型號：

SF39-Y0.12KW，SF39-Y0.18KW，SF39-Y0.25KW，SF39-Y0.37KW，SF39-Y0.55KW，SF39-Y0.75KW，SF39-Y1.1KW，SF39-Y1.5KW，SF39-Y63M4，SF39-Y71M4，SF39-Y80M4，SF39-Y90M4，SF39-YB63M4，SF39-YB71M4，SF39-YB80M4，SF39-YB90M4，SF39-YDP63M4，SF39-YDP71M4，SF39-YDP80M4，SF39-YDP90M4，SF39-YE63M4，SF39-YE71M4，SF39-YE80M4，SF39-YE90M4，SF39-YEJ63M4，SF39-YEJ71M4，SF39-YEJ80M4，SF39-YEJ90M4，SF39-YEJB63M4，SF39-YEJB71M4，SF39-YEJB80M4，SF39-YEJB90M4，SF39-YP63M4，SF39-YP71M4，SF39-YP80M4，SF39-YP90M4，SF39-YPB63M4，SF39-YPB71M4，SF39-YPB80M4，SF39-YPB90M4，SF39-YPE63M4，SF39-YPE71M4，SF39-YPE80M4，SF39-YPE90M4，SF39-YS63M4，SF39-YS71M4，SF39-YS80M4，SF39-YS90M4，SF39-YVB63M4，SF39-YVB71M4，SF39-YVB80M4，SF39-YVB90M4，SF39-YVP63M4，SF39-YVP71M4，SF39-YVP80M4，SF39-YVP90M4，SF39-YVPEJ63M4，SF39-YVPEJ71M4，SF39-YVPEJ80M4，SF39-YVPEJ90M4，XDSF37-Y0.12KW，XDSF37-Y0.18KW，XDSF37-Y0.25KW，XDSF37-Y0.37KW，XDSF37-Y0.55KW，XDSF37-Y0.75KW，XDSF37-Y1.1KW，XDSF37-Y1.5KW，XDSF37-Y63M4，XDSF37-Y71M4，XDSF37-Y80M4，XDSF37-Y90M4，XDSF37-YB63M4，XDSF37-YB71M4，XDSF37-YB80M4，XDSF37-YB90M4，XDSF37-YDP63M4，XDSF37-YDP71M4，XDSF37-YDP80M4，XDSF37-YDP90M4，XDSF37-YE63M4，XDSF37-YE71M4，XDSF37-YE80M4，XDSF37-YE90M4，XDSF37-YEJ63M4，XDSF37-YEJ71M4，XDSF37-YEJ80M4，XDSF37-YEJ90M4，XDSF37-YEJB63M4，XDSF37-YEJB71M4，XDSF37-YEJB80M4，XDSF37-YEJB90M4，XDSF37-YP63M4，XDSF37-YP71M4，XDSF37-YP80M4，XDSF37-YP90M4，XDSF37-YPB63M4，XDSF37-YPB71M4，XDSF37-YPB80M4，XDSF37-YPB90M4，XDSF37-YPE63M4，XDSF37-YPE71M4，XDSF37-YPE80M4，XDSF37-YPE90M4，XDSF37-YS63M4，XDSF37-YS71M4，XDSF37-YS80M4，XDSF37-YS90M4，XDSF37-YVB63M4，XDSF37-YVB71M4，XDSF37-YVB80M4，XDSF37-YVB90M4，XDSF37-YVP63M4，XDSF37-YVP71M4，XDSF37-YVP80M4，XDSF37-YVP90M4，XDSF37-YVPEJ63M4，XDSF37-YVPEJ71M4，XDSF37-YVPEJ80M4，XDSF37-YVPEJ90M4，JCSF37-Y0.12KW，JCSF37-Y0.18KW，JCSF37-Y0.25KW，JCSF37-Y0.37KW，JCSF37-Y0.55KW，JCSF37-Y0.75KW，JCSF37-Y1.1KW，JCSF37-Y1.5KW，JCSF37-Y63M4，JCSF37-Y71M4，JCSF37-Y80M4，JCSF37-Y90M4，JCSF37-YB63M4，JCSF37-YB71M4，JCSF37-YB80M4，JCSF37-YB90M4，JCSF37-YDP63M4，JCSF37-YDP71M4，JCSF37-YDP80M4，JCSF37-YDP90M4，JCSF37-YE63M4，JCSF37-YE71M4，JCSF37-YE80M4，JCSF37-YE90M4，JCSF37-YEJ63M4，JCSF37-YEJ71M4，JCSF37-YEJ80M4，JCSF37-YEJ90M4，JCSF37-YEJB63M4，JCSF37-YEJB71M4，JCSF37-YEJB80M4，JCSF37-YEJB90M4，JCSF37-YP63M4，JCSF37-YP71M4，JCSF37-YP80M4，JCSF37-YP90M4，JCSF37-YPB63M4，JCSF37-YPB71M4，JCSF37-YPB80M4，JCSF37-YPB90M4，JCSF37-YPE63M4，JCSF37-YPE71M4，JCSF37-YPE80M4，JCSF37-YPE90M4，JCSF37-YS63M4，JCSF37-YS71M4，JCSF37-YS80M4，JCSF37-YS90M4，JCSF37-YVB63M4，JCSF37-YVB71M4，JCSF37-YVB80M4，JCSF37-YVB90M4，JCSF37-YVP63M4，JCSF37-YVP71M4，JCSF37-YVP80M4，JCSF37-YVP90M4，JCSF37-YVPEJ63M4，JCSF37-YVPEJ71M4，JCSF37-YVPEJ80M4，JCSF37-YVPEJ90M4，YQSF37-Y0.12KW，YQSF37-Y0.18KW，YQSF37-Y0.25KW，YQSF37-Y0.37KW，YQSF37-Y0.55KW，YQSF37-Y0.75KW，YQSF37-Y1.1KW，YQSF37-Y1.5KW，YQSF37-Y63M4，YQSF37-Y71M4，YQSF37-Y80M4，YQSF37-Y90M4，YQSF37-YB63M4，YQSF37-YB71M4，YQSF37-YB80M4，YQSF37-YB90M4，YQSF37-YDP63M4，YQSF37-YDP71M4，YQSF37-YDP80M4，YQSF37-YDP90M4，YQSF37-YE63M4，YQSF37-YE71M4，YQSF37-YE80M4，YQSF37-YE90M4，YQSF37-YEJ63M4，YQSF37-YEJ71M4，YQSF37-YEJ80M4，YQSF37-YEJ90M4，YQSF37-YEJB63M4，YQSF37-YEJB71M4，YQSF37-YEJB80M4，YQSF37-YEJB90M4，YQSF37-YP63M4，YQSF37-YP71M4，YQSF37-YP80M4，YQSF37-YP90M4，YQSF37-YPB63M4，YQSF37-YPB71M4，YQSF37-YPB80M4，YQSF37-YPB90M4，YQSF37-YPE63M4，YQSF37-YPE71M4，YQSF37-YPE80M4，YQSF37-YPE90M4，YQSF37-YS63M4，YQSF37-YS71M4，YQSF37-YS80M4，YQSF37-YS90M4，YQSF37-YVB63M4，YQSF37-YVB71M4，YQSF37-YVB80M4，YQSF37-YVB90M4，YQSF37-YVP63M4，YQSF37-YVP71M4，YQSF37-YVP80M4，YQSF37-YVP90M4，YQSF37-YVPEJ63M4，YQSF37-YVPEJ71M4，YQSF37-YVPEJ80M4，YQSF37-YVPEJ90M4，SWF37-Y0.12KW，SWF37-Y0.18KW，SWF37-Y0.25KW，SWF37-Y0.37KW，SWF37-Y0.55KW，SWF37-Y0.75KW，SWF37-Y1.1KW，SWF37-Y1.5KW，SWF37-Y63M4，SWF37-Y71M4，SWF37-Y80M4，SWF37-Y90M4，SWF37-YB63M4，SWF37-YB71M4，SWF37-YB80M4，SWF37-YB90M4，SWF37-YDP63M4，SWF37-YDP71M4，SWF37-YDP80M4，SWF37-YDP90M4，SWF37-YE63M4，SWF37-YE71M4，SWF37-YE80M4，SWF37-YE90M4，SWF37-YEJ63M4，SWF37-YEJ71M4，SWF37-YEJ80M4，SWF37-YEJ90M4，SWF37-YEJB63M4，SWF37-YEJB71M4，SWF37-YEJB80M4，SWF37-YEJB90M4，SWF37-YP63M4，SWF37-YP71M4，SWF37-YP80M4，SWF37-YP90M4，SWF37-YPB63M4，SWF37-YPB71M4，SWF37-YPB80M4，SWF37-YPB90M4，SWF37-YPE63M4，SWF37-YPE71M4，SWF37-YPE80M4，SWF37-YPE90M4，SWF37-YS63M4，SWF37-YS71M4，SWF37-YS80M4，SWF37-YS90M4，SWF37-YVB63M4，SWF37-YVB71M4，SWF37-YVB80M4，SWF37-YVB90M4，SWF37-YVP63M4，SWF37-YVP71M4，SWF37-YVP80M4，SWF37-YVP90M4，SWF37-YVPEJ63M4，SWF37-YVPEJ71M4，SWF37-YVPEJ80M4，SWF37-YVPEJ90M4。

SF39減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.yayuyw.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S39減速機
