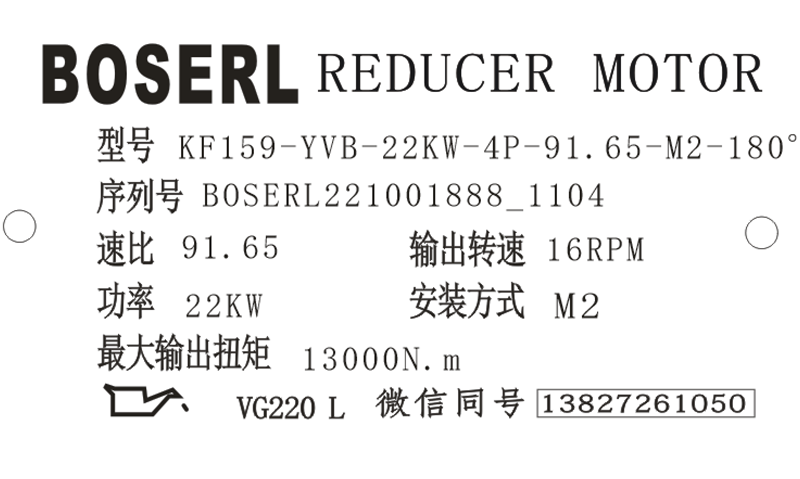

KF159減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K159減速機選型樣本。

KF159-YVB-22KW-4P-91.65-M2-180°

KF：系列代號

159：減速機規格代號

YVB：電機

22KW：電機功率

4P：電機級數

91.65：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

KF159減速機潤滑油型號：

KF159減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF159減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF159減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF159減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF159減速機選型樣本中列出了安裝位置從M1到M6KF159減速機相應的潤滑油加注標準，請自行下載查看。

KF159減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF159減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF159減速機使用說明：

KF159減速機警告說明：由于KF159減速機發熱或KF159減速機油溫過高可能引起燙傷；對KF159減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF159減速機注意事項：若未注入正確的KF159減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF159減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF159減速機說明書安裝位置章節中的內容。

KF159減速機的螺母：立式安裝KF159減速機輸出法蘭螺母規格M20；KF159減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF159減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF159減速機型號：

AKF157-Y110SKF，AKF157-Y11SKF，AKF157-Y132SKF，AKF157-Y15SKF，AKF157-Y160SKF，AKF157-Y160M4，AKF157-Y18.5SKF，AKF157-Y180M4，AKF157-Y200SKF，AKF157-Y200M4，AKF157-Y225M4，AKF157-Y22SKF，AKF157-Y250M4，AKF157-Y280M4，AKF157-Y30SKF，AKF157-Y315M4，AKF157-Y37SKF，AKF157-Y45SKF，AKF157-Y55SKF，AKF157-Y75SKF，AKF157-Y90SKF，AKF157-YB160M4，AKF157-YB180M4，AKF157-YB200M4，AKF157-YB225M4，AKF157-YB250M4，AKF157-YB280M4，AKF157-YB315M4，AKF157-YDP160M4，AKF157-YDP180M4，AKF157-YDP200M4，AKF157-YDP225M4，AKF157-YDP250M4，AKF157-YDP280M4，AKF157-YDP315M4，AKF157-YE160M4，AKF157-YE180M4，AKF157-YE200M4，AKF157-YE225M4，AKF157-YE250M4，AKF157-YE280M4，AKF157-YE315M4，AKF157-YEJ160M4，AKF157-YEJ180M4，AKF157-YEJ200M4，AKF157-YEJ225M4，AKF157-YEJ250M4，AKF157-YEJ280M4，AKF157-YEJ315M4，AKF157-YEJB160M4，AKF157-YEJB180M4，AKF157-YEJB200M4，AKF157-YEJB225M4，AKF157-YEJB250M4，AKF157-YEJB280M4，AKF157-YEJB315M4，AKF157-YP160M4，AKF157-YP180M4，AKF157-YP200M4，AKF157-YP225M4，AKF157-YP250M4，AKF157-YP280M4，AKF157-YP315M4，AKF157-YPB160M4，AKF157-YPB180M4，AKF157-YPB200M4，AKF157-YPB225M4，AKF157-YPB250M4，AKF157-YPB280M4，AKF157-YPB315M4，AKF157-YPE160M4，AKF157-YPE180M4，AKF157-YPE200M4，AKF157-YPE225M4，AKF157-YPE250M4，AKF157-YPE280M4，AKF157-YPE315M4，AKF157-YS160M4，AKF157-YS180M4，AKF157-YS200M4，AKF157-YS225M4，AKF157-YS250M4，AKF157-YS280M4，AKF157-YS315M4，AKF157-YVB160M4，AKF157-YVB180M4，AKF157-YVB200M4，AKF157-YVB225M4，AKF157-YVB250M4，AKF157-YVB280M4，AKF157-YVB315M4，AKF157-YVP160M4，AKF157-YVP180M4，AKF157-YVP200M4，AKF157-YVP225M4，AKF157-YVP250M4，AKF157-YVP280M4，AKF157-YVP315M4，AKF157-YVPEJ160M4，AKF157-YVPEJ180M4，AKF157-YVPEJ200M4，AKF157-YVPEJ225M4，AKF157-YVPEJ250M4，AKF157-YVPEJ280M4，AKF157-YVPEJ315M4，WKF157-Y110SKF，WKF157-Y11SKF，WKF157-Y132SKF，WKF157-Y15SKF，WKF157-Y160SKF，WKF157-Y160M4，WKF157-Y18.5SKF，WKF157-Y180M4，WKF157-Y200SKF，WKF157-Y200M4，WKF157-Y225M4，WKF157-Y22SKF，WKF157-Y250M4，WKF157-Y280M4，WKF157-Y30SKF，WKF157-Y315M4，WKF157-Y37SKF，WKF157-Y45SKF，WKF157-Y55SKF，WKF157-Y75SKF，WKF157-Y90SKF，WKF157-YB160M4，WKF157-YB180M4，WKF157-YB200M4，WKF157-YB225M4，WKF157-YB250M4，WKF157-YB280M4，WKF157-YB315M4，WKF157-YDP160M4，WKF157-YDP180M4，WKF157-YDP200M4，WKF157-YDP225M4，WKF157-YDP250M4，WKF157-YDP280M4，WKF157-YDP315M4，WKF157-YE160M4，WKF157-YE180M4，WKF157-YE200M4，WKF157-YE225M4，WKF157-YE250M4，WKF157-YE280M4，WKF157-YE315M4，WKF157-YEJ160M4，WKF157-YEJ180M4，WKF157-YEJ200M4，WKF157-YEJ225M4，WKF157-YEJ250M4，WKF157-YEJ280M4，WKF157-YEJ315M4，WKF157-YEJB160M4，WKF157-YEJB180M4，WKF157-YEJB200M4，WKF157-YEJB225M4，WKF157-YEJB250M4，WKF157-YEJB280M4，WKF157-YEJB315M4，WKF157-YP160M4，WKF157-YP180M4，WKF157-YP200M4，WKF157-YP225M4，WKF157-YP250M4，WKF157-YP280M4，WKF157-YP315M4，WKF157-YPB160M4，WKF157-YPB180M4，WKF157-YPB200M4，WKF157-YPB225M4，WKF157-YPB250M4，WKF157-YPB280M4，WKF157-YPB315M4，WKF157-YPE160M4，WKF157-YPE180M4，WKF157-YPE200M4，WKF157-YPE225M4，WKF157-YPE250M4，WKF157-YPE280M4，WKF157-YPE315M4，WKF157-YS160M4，WKF157-YS180M4，WKF157-YS200M4，WKF157-YS225M4，WKF157-YS250M4，WKF157-YS280M4，WKF157-YS315M4，WKF157-YVB160M4，WKF157-YVB180M4，WKF157-YVB200M4，WKF157-YVB225M4，WKF157-YVB250M4，WKF157-YVB280M4，WKF157-YVB315M4，WKF157-YVP160M4，WKF157-YVP180M4，WKF157-YVP200M4，WKF157-YVP225M4，WKF157-YVP250M4，WKF157-YVP280M4，WKF157-YVP315M4，WKF157-YVPEJ160M4，WKF157-YVPEJ180M4，WKF157-YVPEJ200M4，WKF157-YVPEJ225M4，WKF157-YVPEJ250M4，WKF157-YVPEJ280M4，WKF157-YVPEJ315M4，NKF157-Y110SKF，NKF157-Y11SKF，NKF157-Y132SKF，NKF157-Y15SKF，NKF157-Y160SKF，NKF157-Y160M4，NKF157-Y18.5SKF，NKF157-Y180M4，NKF157-Y200SKF，NKF157-Y200M4，NKF157-Y225M4，NKF157-Y22SKF，NKF157-Y250M4，NKF157-Y280M4，NKF157-Y30SKF，NKF157-Y315M4，NKF157-Y37SKF，NKF157-Y45SKF，NKF157-Y55SKF，NKF157-Y75SKF，NKF157-Y90SKF，NKF157-YB160M4，NKF157-YB180M4，NKF157-YB200M4，NKF157-YB225M4，NKF157-YB250M4，NKF157-YB280M4，NKF157-YB315M4，NKF157-YDP160M4，NKF157-YDP180M4，NKF157-YDP200M4，NKF157-YDP225M4，NKF157-YDP250M4，NKF157-YDP280M4，NKF157-YDP315M4，NKF157-YE160M4，NKF157-YE180M4，NKF157-YE200M4，NKF157-YE225M4，NKF157-YE250M4，NKF157-YE280M4，NKF157-YE315M4，NKF157-YEJ160M4，NKF157-YEJ180M4，NKF157-YEJ200M4，NKF157-YEJ225M4，NKF157-YEJ250M4，NKF157-YEJ280M4，NKF157-YEJ315M4，NKF157-YEJB160M4，NKF157-YEJB180M4，NKF157-YEJB200M4，NKF157-YEJB225M4，NKF157-YEJB250M4，NKF157-YEJB280M4，NKF157-YEJB315M4，NKF157-YP160M4，NKF157-YP180M4，NKF157-YP200M4，NKF157-YP225M4，NKF157-YP250M4，NKF157-YP280M4，NKF157-YP315M4，NKF157-YPB160M4，NKF157-YPB180M4，NKF157-YPB200M4，NKF157-YPB225M4，NKF157-YPB250M4，NKF157-YPB280M4，NKF157-YPB315M4，NKF157-YPE160M4，NKF157-YPE180M4，NKF157-YPE200M4，NKF157-YPE225M4，NKF157-YPE250M4，NKF157-YPE280M4，NKF157-YPE315M4，NKF157-YS160M4，NKF157-YS180M4，NKF157-YS200M4，NKF157-YS225M4，NKF157-YS250M4，NKF157-YS280M4，NKF157-YS315M4，NKF157-YVB160M4，NKF157-YVB180M4，NKF157-YVB200M4，NKF157-YVB225M4，NKF157-YVB250M4，NKF157-YVB280M4，NKF157-YVB315M4，NKF157-YVP160M4，NKF157-YVP180M4，NKF157-YVP200M4，NKF157-YVP225M4，NKF157-YVP250M4，NKF157-YVP280M4，NKF157-YVP315M4，NKF157-YVPEJ160M4，NKF157-YVPEJ180M4，NKF157-YVPEJ200M4，NKF157-YVPEJ225M4，NKF157-YVPEJ250M4，NKF157-YVPEJ280M4，NKF157-YVPEJ315M4，GKF159-Y110SKF，GKF159-Y11SKF，GKF159-Y132SKF，GKF159-Y15SKF，GKF159-Y160SKF，GKF159-Y160M4，GKF159-Y18.5SKF，GKF159-Y180M4，GKF159-Y200SKF，GKF159-Y200M4，GKF159-Y225M4，GKF159-Y22SKF，GKF159-Y250M4，GKF159-Y280M4，GKF159-Y30SKF，GKF159-Y315M4，GKF159-Y37SKF，GKF159-Y45SKF，GKF159-Y55SKF，GKF159-Y75SKF，GKF159-Y90SKF，GKF159-YB160M4，GKF159-YB180M4，GKF159-YB200M4，GKF159-YB225M4，GKF159-YB250M4，GKF159-YB280M4，GKF159-YB315M4，GKF159-YDP160M4，GKF159-YDP180M4，GKF159-YDP200M4，GKF159-YDP225M4，GKF159-YDP250M4，GKF159-YDP280M4，GKF159-YDP315M4，GKF159-YE160M4，GKF159-YE180M4，GKF159-YE200M4，GKF159-YE225M4，GKF159-YE250M4，GKF159-YE280M4，GKF159-YE315M4，GKF159-YEJ160M4，GKF159-YEJ180M4，GKF159-YEJ200M4，GKF159-YEJ225M4，GKF159-YEJ250M4，GKF159-YEJ280M4，GKF159-YEJ315M4，GKF159-YEJB160M4，GKF159-YEJB180M4，GKF159-YEJB200M4，GKF159-YEJB225M4，GKF159-YEJB250M4，GKF159-YEJB280M4，GKF159-YEJB315M4，GKF159-YP160M4，GKF159-YP180M4，GKF159-YP200M4，GKF159-YP225M4，GKF159-YP250M4，GKF159-YP280M4，GKF159-YP315M4，GKF159-YPB160M4，GKF159-YPB180M4，GKF159-YPB200M4，GKF159-YPB225M4，GKF159-YPB250M4，GKF159-YPB280M4，GKF159-YPB315M4，GKF159-YPE160M4，GKF159-YPE180M4，GKF159-YPE200M4，GKF159-YPE225M4，GKF159-YPE250M4，GKF159-YPE280M4，GKF159-YPE315M4，GKF159-YS160M4，GKF159-YS180M4，GKF159-YS200M4，GKF159-YS225M4，GKF159-YS250M4，GKF159-YS280M4，GKF159-YS315M4，GKF159-YVB160M4，GKF159-YVB180M4，GKF159-YVB200M4，GKF159-YVB225M4，GKF159-YVB250M4，GKF159-YVB280M4，GKF159-YVB315M4，GKF159-YVP160M4，GKF159-YVP180M4，GKF159-YVP200M4，GKF159-YVP225M4，GKF159-YVP250M4，GKF159-YVP280M4，GKF159-YVP315M4，GKF159-YVPEJ160M4，GKF159-YVPEJ180M4，GKF159-YVPEJ200M4，GKF159-YVPEJ225M4，GKF159-YVPEJ250M4，GKF159-YVPEJ280M4，GKF159-YVPEJ315M4，SKF157-Y110SKF，SKF157-Y11SKF，SKF157-Y132SKF，SKF157-Y15SKF，SKF157-Y160SKF，SKF157-Y160M4，SKF157-Y18.5SKF，SKF157-Y180M4，SKF157-Y200SKF，SKF157-Y200M4，SKF157-Y225M4，SKF157-Y22SKF，SKF157-Y250M4，SKF157-Y280M4，SKF157-Y30SKF，SKF157-Y315M4，SKF157-Y37SKF，SKF157-Y45SKF，SKF157-Y55SKF，SKF157-Y75SKF，SKF157-Y90SKF，SKF157-YB160M4，SKF157-YB180M4，SKF157-YB200M4，SKF157-YB225M4，SKF157-YB250M4，SKF157-YB280M4，SKF157-YB315M4，SKF157-YDP160M4，SKF157-YDP180M4，SKF157-YDP200M4，SKF157-YDP225M4，SKF157-YDP250M4，SKF157-YDP280M4，SKF157-YDP315M4，SKF157-YE160M4，SKF157-YE180M4，SKF157-YE200M4，SKF157-YE225M4，SKF157-YE250M4，SKF157-YE280M4，SKF157-YE315M4，SKF157-YEJ160M4，SKF157-YEJ180M4，SKF157-YEJ200M4，SKF157-YEJ225M4，SKF157-YEJ250M4，SKF157-YEJ280M4，SKF157-YEJ315M4，SKF157-YEJB160M4，SKF157-YEJB180M4，SKF157-YEJB200M4，SKF157-YEJB225M4，SKF157-YEJB250M4，SKF157-YEJB280M4，SKF157-YEJB315M4，SKF157-YP160M4，SKF157-YP180M4，SKF157-YP200M4，SKF157-YP225M4，SKF157-YP250M4，SKF157-YP280M4，SKF157-YP315M4，SKF157-YPB160M4，SKF157-YPB180M4，SKF157-YPB200M4，SKF157-YPB225M4，SKF157-YPB250M4，SKF157-YPB280M4，SKF157-YPB315M4，SKF157-YPE160M4，SKF157-YPE180M4，SKF157-YPE200M4，SKF157-YPE225M4，SKF157-YPE250M4，SKF157-YPE280M4，SKF157-YPE315M4，SKF157-YS160M4，SKF157-YS180M4，SKF157-YS200M4，SKF157-YS225M4，SKF157-YS250M4，SKF157-YS280M4，SKF157-YS315M4，SKF157-YVB160M4，SKF157-YVB180M4，SKF157-YVB200M4，SKF157-YVB225M4，SKF157-YVB250M4，SKF157-YVB280M4，SKF157-YVB315M4，SKF157-YVP160M4，SKF157-YVP180M4，SKF157-YVP200M4，SKF157-YVP225M4，SKF157-YVP250M4，SKF157-YVP280M4，SKF157-YVP315M4，SKF157-YVPEJ160M4，SKF157-YVPEJ180M4，SKF157-YVPEJ200M4，SKF157-YVPEJ225M4，SKF157-YVPEJ250M4，SKF157-YVPEJ280M4，SKF157-YVPEJ315M4。

KF159減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.yayuyw.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K159減速機
